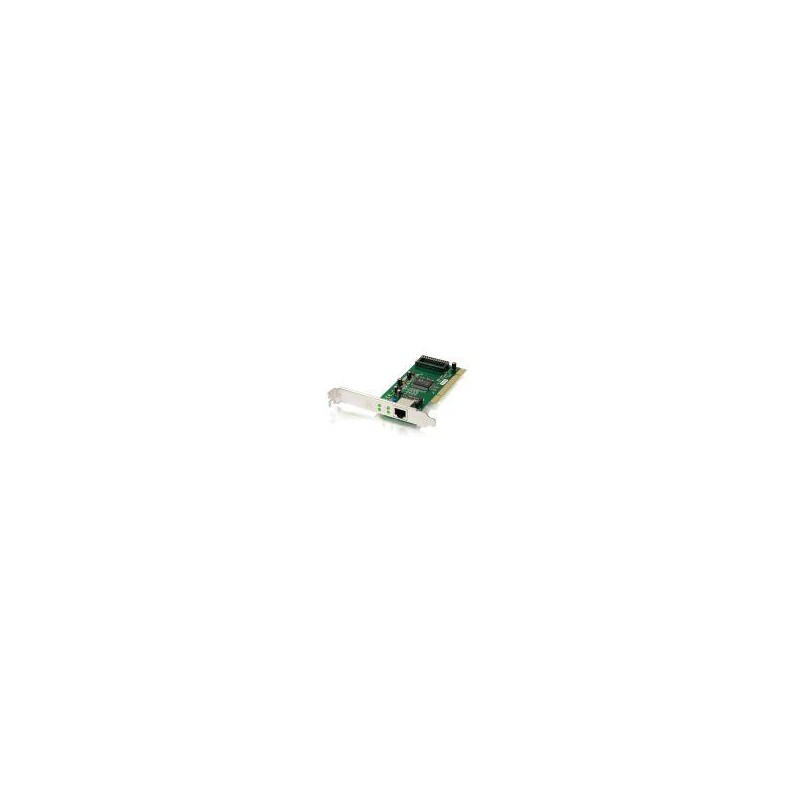

LEVELONE TARJETA DE RED PCI GIGABIT 100/1000 RJ45

System Specifications
Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.1P Priority Queuing
IEEE 802.1Q Virtual LANs (VLANs)
Puerto:
1x 10/100/1000Base-T RJ-45 Port
Interfaz de bus:
32-bit 33/66MHz PCI-bus
Indicador:
1000/100/10Mbps, Link/Activity
Velocidad de datos:
Ethernet: 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet: 100Mbps half-duplex, 200Mbps full-duplex
Gigabit Ethernet: 1000Mbps half-duplex, 2000Mbps full-duplex
Features
General:
Intel® 82540EM Gigabit Controller
Network Cable and maximum Length:
Ethernet: 2 pair UTP Cat. 3,4,5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
Fast Ethernet: 2 pair UTP Cat. 5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
Gigabit Ethernet: 4 pair UTP Cat. 3,4,5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
Características de gestión:
support preboot execute environment (PXE), supporting remote boot
Supports ACPI, PCI power management
Environment
Temperatura de funcionamiento (° C):
Operating: 0°C ~ 50°C
Humedad de funcionamiento:
Operating: 5% ~ 90%
Physical Specifications
Dimensiones (W x D x H mm):
115 x 140 x 17mm
Peso (gramos):
60g
Approval and Compliance
EMI/EMS:
FCC Class, CE, RoHS
Others
Operation Systems:
Windows 8/8.1/10
Windows ME / 98 / 98SE
Windows XP / 7 / 8 / 8.1
Windows 2000 / 2003 / 2008 / 2008 R2
SCO OpenServer 6 and UnixWare 7.1.x
LINUX driver for kernel 3.x and 2.6.x and 2.4.x
FreeBSD 7.x and 8.0
SCO Unix 5.0.6 and 5.07
DOS
Mac OSX 10.2.X, MAC OSX 10.3
MacOS 10.4.X on Power Mac computer
