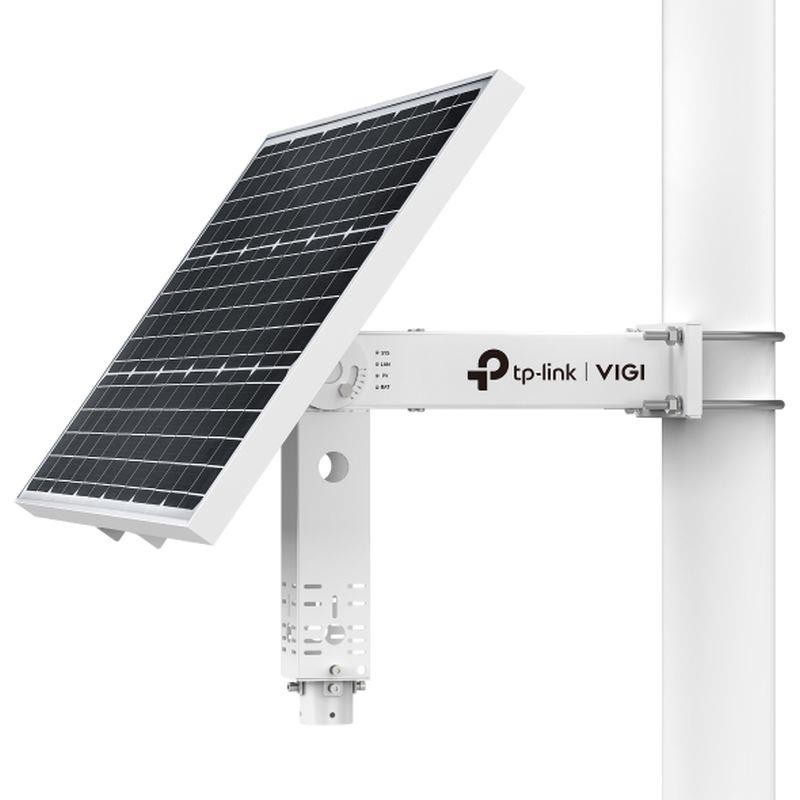

VIGI SISETMA DE PANEL SOLAR INTELIGENTE SP9030

Panel fotovoltaico de 90W y batería de litio de 30Ah/10,8V
Diseño modular
Ángulos ajustables 5°/15°/25°/35°/45°/55
Tecnología de calentamiento auxiliar inteligente
Controlador de carga de seguimiento del punto de máxima potencia (MPPT)
Resistente a la intemperie IP66
Gestión remota
Instalación sencilla
SOLAR PANEL (PHOTOVOLTAIC PANEL)
Power90 W
Voltage18 V
Dimensions (L x W x H)998×516×30 mm (39.3×20.3×1.2 in)
BATTERY
TypeLithium
Intelligent Auxiliary HeatYes
Battery Capacity 31.2 Ah
Voltage10.8 V
Max. Output Voltage12.6 V
LifeMore than 500 cycles
Dimension250×74×74 mm (9.8×2.9×2.9 in)
Charging Condition• 0°C~45°C
• -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition• -20°C~60°C
• -30°C~60°C (With intelligent auxiliary heating)
ANGLE ADJUSTMENT (MANUAL)
Range5°/15°/25°/35°/45°/55°
HARDWARE
Interfaz• 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED• Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
• Color: Blue
CARACTERÍSTICAS DE SOFTWARE
Load ControlYes
High and Low Temperature ProtectionYes
Overdischarge ProtectionYes
Power Consumption StatisticsYes
Displays Real-time Load StatusYes
Battery Level DisplayYes
Time Zone SelectionYes
Region SelectionYes
Schedule SavingYes
Firmware Remote UpdateYes
Remote RebootYes
Local LAN ManagementYes
Smart Charging Control-30°C~5°C
Account ManagementYes
Web ManagementYes
Remote ResetYes
Remote Message PushYes
OTROS
Certificaciones• CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66
Contenido del Paquete• VIGI SP9030
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Dimensiones de la Caja1110×615×225 mm (43.7×24.2×8.9 in)
Peso• Product Weight: 15 kg
• Package Weight: 17.5 kg
Ambiente• Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
• Operating Humidity: 10%~90%RH, Non-condensing
