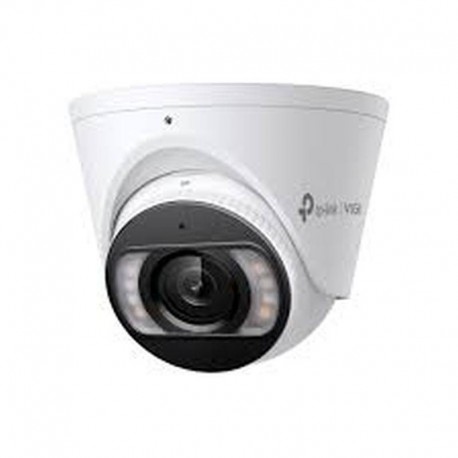

VIGI CAMARA BALA VIGI C445 PARA EXTERIOR 4MP 4MM

VIGI C445
Cámara IP VIGI tipo turret Full Color VIGI de 4MP
4MP de súper alta definición y 24 horas a todo color
Análisis de personas y vehículos
Clasificación de personas y vehículos
Detección inteligente
Tecnología de mejora de vídeo inteligente
Defensa activa y audio bidireccional
Estanqueidad IP67
Tecnología de compresión H.265

Cámara
Sensor de Imagen1/2.7” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Iluminación Mínima0.005 Lux; 0 Lux with IR/White light
Mecanismo Día/NocheIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
LENS
TypeFixed Focal Lens
Focal Length2.8/4 mm
ApertureF1.6
FOV• 2.8 mm:
Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°

• 4 mm:
Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens MountM12*P 0.5
DORI Distance• 2.8 mm
Detect: 64 m (210 ft)
Observe: 27 m (89 ft)
Recognize: 13 m (43 ft)
Identify: 6 m (20 ft)

• 4 mm
Detect: 80 m (262 ft)
Observe: 33 m (108 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
ILLUMINATOR
IR LED• Quantity: 4
• Range: 30m
• Wavelength: 850nm
White LED• Quantity: 4
• Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
VIDEO
Max. Resolution2688 x 1520
Main Stream• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
704x576,640x480, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Compresión de video• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile*
H.265+Main Stream Supported*
Video Bit Rate• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/SmartIR
Wide Dynamic Range120 dB

Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR= 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Comunicación de AudioTwo-Way Audio
Entrada de AudioYes
Salida de AudioYes
Compresión de AudioYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Red
ProtocoloTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S)
Vista en vivo simultánea3 Main Streams & 3 Sub-Streams
ClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS
Web Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
CloudYes
SeguridadPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARMA Y GESTIÓN DE EVENTOS
Smart Event• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• Smart Frame
• People Detection
• Vehicle Detection
Basic Event• Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)
• Scene Change Detection
Alarm Linkage• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
Linkage MethodN/A
Output NotificationMessage Push
Deep Learning Function
People & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
INTERFACES
Interfaz de Red1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmaN/A
Reset ButtonYes
PowerDC Power Port
Almacenamiento internoBuilt-In Memory Card Slot, Support MicroSD Card, up to 256 GB**
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerYes
AudioN/A
GENERAL
Temperatura de funcionamiento-30–60 °C
Storage Temperature-40–60 °C
Humedad de funcionamiento95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Contenido del Paquete• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
MaterialMetal
Peso neto0.48 Kg
Power Supply• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12 W
ProtectionIP67
Product Dimensions (L x W x H)111 × 111 × 83.7 mm
CertificacionesCE, NTRA, VCCI, KC, BSMI, FCC, IC
