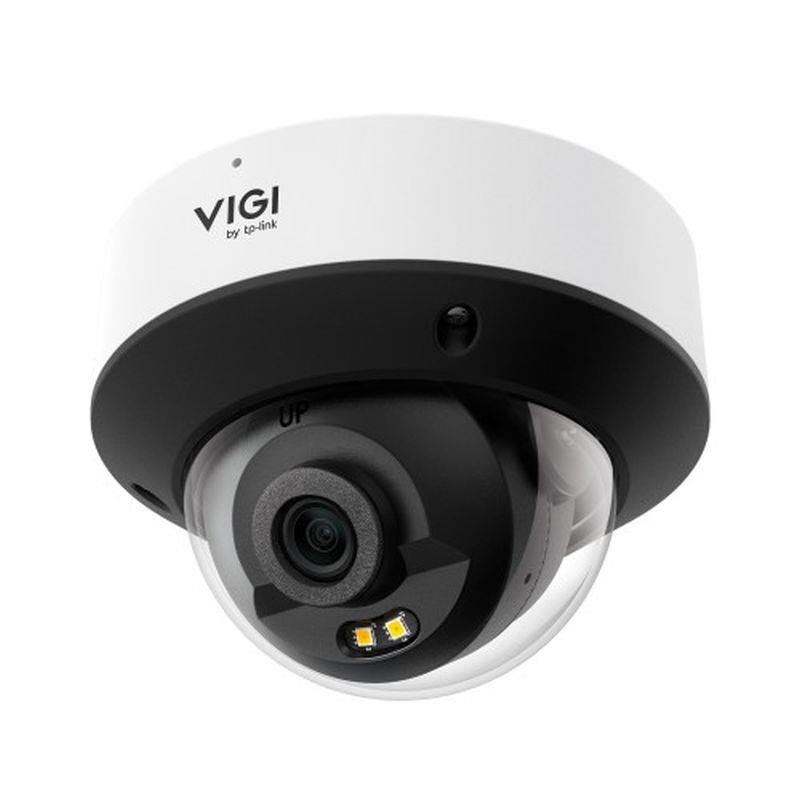

VIGI CAMARA INSIGHT S225 2.8MM

Cámara IP VIGI tipo domo Full-Color de 2MP
Alta definición de 2MP y 24 horas a todo color
Clasificación de personas y vehículos
Detección inteligente
LightPro Night Vision
Tecnología de mejora de vídeo inteligente
Defensa activa y audio bidireccional
Resistente al agua IP67 y protección IK10
Tecnología de compresión H.265+

Cámara
Sensor de Imagen1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Iluminación Mínima0.2 Lux; 0 Lux with IR/White light
Mecanismo Día/NocheIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
LENS
TypeFixed Focal Lens
Focal Length2.8 mm / 4 mm
ApertureF2.0
FOV• 2.8 mm:
Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117°

• 4 mm:
Horizontal : 75.2°,Vertical: 40.8°,Diagonal: 88.3°
Lens MountM12
DORI Distance• 2.8 mm
Detect: 5 m (16 ft)
Observe: 9 m (30 ft)
Recognize: 19 m (62 ft)
Identify: 47 m (154 ft)

• 4 mm
Angle Adjustment (Manual)
RangePan: 0° to 353.5°, Tilt:0° to 75°, Rotate:0° to 355°
ILLUMINATOR
IR LED• Quantity: 2
• Range: 30m
• Wavelength: 850nm
White LED• Quantity: 2
• Range: 30m
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Integrated Infrared-White LED• Quantity: 2
• IR Range: 98 ft (30 m)*3
• White LED Range: 98 ft (30 m)*3
• IR Wavelength: 850 nm
VIDEO
Max. Resolution2688 x 1520
Main Stream• Frame Rate:
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
1920x1080, 1280x960, 1280x720

• Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Sub-Stream• Frame Rate:
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240

• Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Compresión de video• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit Rate• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/Smart IR
Wide Dynamic RangeDWDR
SNR= 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Comunicación de AudioN/A
Entrada de AudioYes
Salida de AudioYes
Compresión de AudioYes
Audio Sampling Rate8KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
Red
ProtocoloTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S/T)
Vista en vivo simultánea3 Main Streams & 3 Sub-Streams
ClientVIGI APP, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool
Web Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
CloudYes
SeguridadPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARMA Y GESTIÓN DE EVENTOS
Smart Event• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• People Detection
• Vehicle Detection
Basic Event• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login)
Alarm Linkage• Sending Email
• Notify Surveillance Center,
• Upload to FTP Server
INTERFACES
Interfaz de Red1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmaN/A
Reset ButtonN/A
PowerDC Power Port
Almacenamiento internoBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
Built-in MicrophoneYes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in SpeakerN/A
AudioN/A
GENERAL
Temperatura de funcionamiento-30 to 60 °C
Storage Temperature-40 to 60 °C
Humedad de funcionamiento95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Contenido del Paquete• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
MaterialMetal
Peso netoxxx Kg
Power Supply• 12V DC ± 5%, Max. xxx W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 6.7 W
ProtectionIP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H)4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)

Ø4.5 × 3.4 in (Ø113.5 × 85.7mm)
CertificacionesCE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
