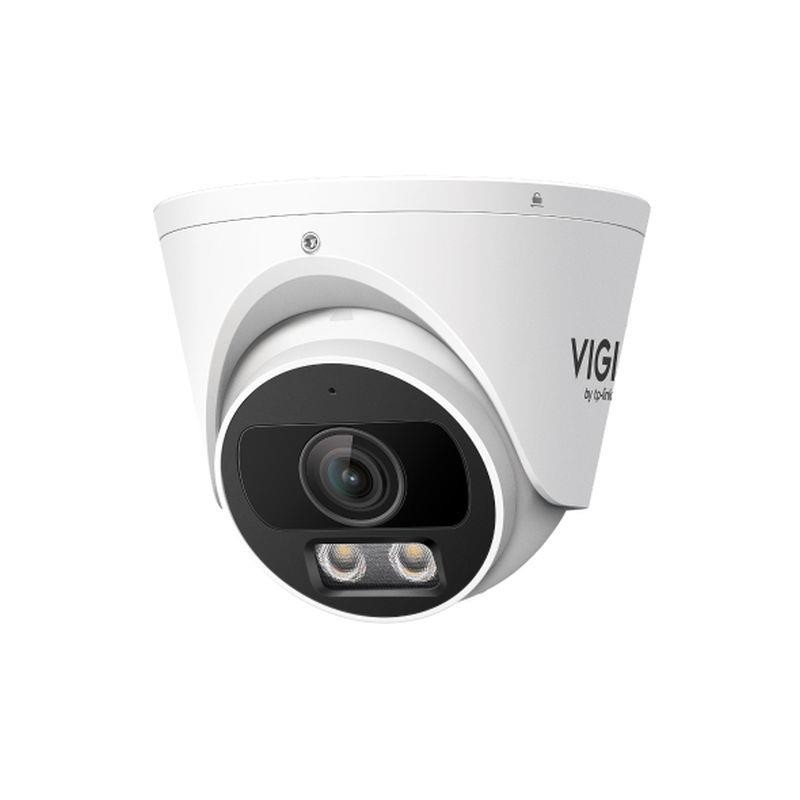

VIGI CAMARA INSIGHT S428 2.8MM VIGI 2MP Full-Color Turret Network Camera

InSight S425
VIGI 2MP Full-Color Turret Network Camera
2MP High Definition and 24h Full-Color
Human & Vehicle Classification
Smart Detection
LightPro Night Vision
Built-In Microphone
Smart Video Enhancement Technology
IP67 Waterproof and IK08 Vandal-Proof
H.265+ Compression Technology

CAMERA
Image Sensor1/3” Progressive Scan CMOS
Shutter Speed1/3 to 1/10000 s
Slow ShutterYes
Minimum Illumination0.005 Lux; 0 Lux with IR/White light
Day/Night MechanismIR Cut Filter
Day/Night SwitchUnified/ Scheduled/ Auto
LENS
TypeFixed Focal Lens
Focal Length2.8 mm / 4 mm
ApertureF2.0
FOV• 2.8 mm:
Horizontal FOV: 98.8°, Vertical FOV: 53.5°, Diagonal FOV: 117°

• 4 mm:
Horizontal : 75.2°, Vertical: 40.8°, Diagonal: 88.3°
Lens MountM12
DORI Distance• 2.8 mm
Detect: 153 ft (47 m)
Observe: 64 ft (19 m)
Recognize: 31 ft (9 m)
Identify: 15 ft (5 m)

• 4 mm
Detect: 194 ft (59 m)
Observe: 81 ft (25 m)
Recognize: 39 ft (12 m)
Identify: 19 ft (6 m)
Angle Adjustment (Manual)
RangePan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
ILLUMINATOR
Illuminator On/Off ControlAuto/Scheduled/Always on/Always off
Integrated Infrared-White LED• Quantity: 2
• IR Range: 98 ft (30 m)*2
• White LED Range: 98 ft (30 m)*2
• IR Wavelength: 850 nm
VIDEO
Max. Resolution1920x1080
Main Stream• Frame Rate:
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
1920x1080, 1280x960, 1280x720

• Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Sub-Stream• Frame Rate:
50Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz:1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
848x480,704x576, 640x480, 640x360,352x288, 320x240

• Note:
If the image rotation is set to 90°, the frame rate only supports up to 20fps.
Bit Rate ControlCBR, VBR
Video Compression• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 TypeHigh Profile
H.264+Main Stream Supported
H.265 TypeMain Profile
H.265+Main Stream Supported
Video Bit Rate• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps
Image Settings• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image EnhancementBLC/3D DNR/HLC/Smart IR
Wide Dynamic RangeDWDR
SNR= 52 dB
Image Parameters SwitchYes
Privacy MaskUp to 4 Masks
ROI1 Region
OSD SettingYes
AUDIO
Audio CommunicationN/A
Audio InputYes
Audio OutputN/A
Audio CompressionYes
Audio Sampling Rate8 KHz
Environment Noise FilteringYes
Audio Bit Rate64 Kbps(G.711 alaw)
NETWORK
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIFYes
APIOpen Network Video Interface (Profile S/T)
Simultaneous Live View3 Main Streams & 3 Sub-Streams
ClientVIGI APP, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool
Web Browser• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
CloudYes
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• People Detection
• Vehicle Detection
Basic Event• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)
• Camera Tampering
• Exception (Illegal Login)
Alarm Linkage• Upload to FTP server
• Push Notifications
• Send to Alarm Server
• Email Alarm
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
AlarmN/A
Reset ButtonN/A
PowerDC Power Port
On-board StorageN/A
Built-in MicrophoneYes; Records Anything Going on within a 15 ft (4.6 m) Radius of the Camera
Built-in SpeakerN/A
AudioN/A
GENERAL
Operating Temperature-30 °C to 60 °C
Storage Temperature-40 °C to 60 °C
Operating Humidity95% or Less (Non-Condensing)
Storage Humidity95% or Less (Non-Condensing)
Package Content• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
MaterialMetal
Net Weight0.43 Kg
Power Supply• 12V DC ± 5%, Max. 7.4 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 8 W
ProtectionIP67 Waterproof, IK08 Vandal Proof
Product Dimensions (L x W x H)Ø4.4 × 3.4 in (Ø112.2 × 87.2 mm)
CertificationsCE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK08
