UBIQUITI WAVE-FIBER-ONU UNIDAD GPON

Ubiquiti Wave-Fiber-ONU GPON con 1x 2,5 GbE, ascendente 1,2 Gbps / enlace descendente de 2,5 Gbps hasta 20 km, compatible con UISP-FIBER-OLT-XGS, UF-OLT-4, UF-OLT
[Wave-Fiber-ONU]


Wave-Fiber-ONU

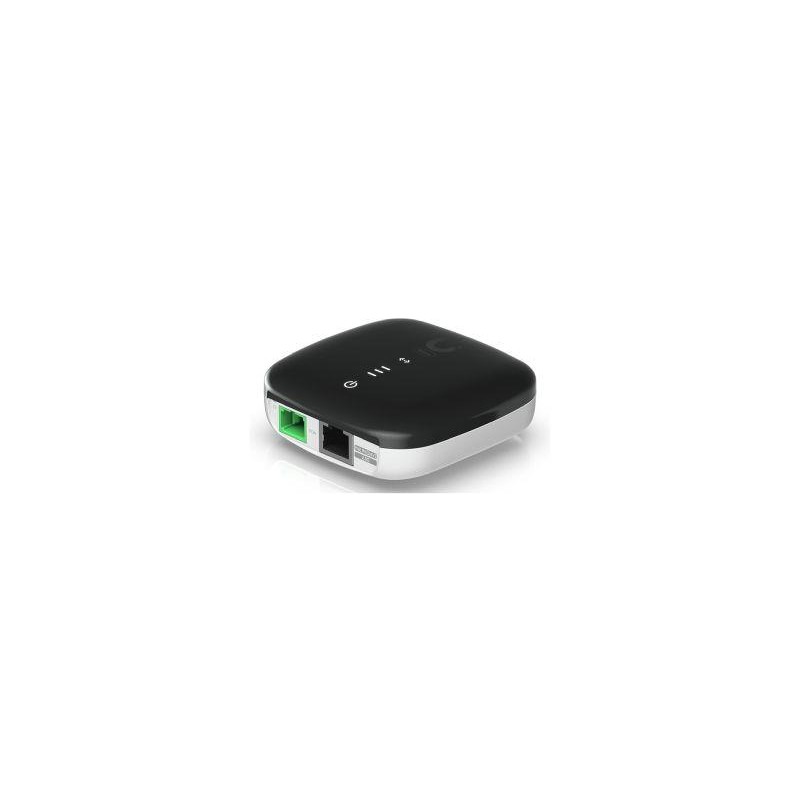

Ubiquiti WaveFiber ONU

Ubiquiti WaveFiber ONU [Wave-Fiber-ONU] es una unidad de red óptica GPON con un puerto de 2,5 GbE que ofrece velocidades de enlace ascendente de 1,2 Gbps / enlace descendente de 2,5 Gbps a distancias de hasta 20 km.

(1) Puerto GPON
(1) puerto LAN RJ45 GbE y entrada PoE de 24 V

MECHANICAL

Mechanical
Dimensions 76.5 x 76.5 x 26.4 mm (3 x 3 x 1)
Weight 78 g (2.8 oz)
Enclosure material Polycarbonate

HARDWARE

Networking interface
(1) SC/APC, ITU-G.984 GPON WAN port
(1) 1/2.5 GbE RJ45 LAN port

Management interface
Ethernet in-band

PON
Power method PoE, 0.3A
Power supply 24V passive PoE 2-pair (4, 5+; 7, 8-)
Supported voltage range 20–28V DC
Max. power consumption 5W

Total non-blocking line rate
Downstream 2.488 Gbps
Upstream 1.244 Gbps

Normal range of optical module
TX 1.5 to 5 dBm
RX -8 to -28 dBm

Mounting
Desktop, wall

Button
(1) Factory reset

Ambient operating temperature
-15 to 45° C (5 to 113° F)

Ambient operating humidity
10 to 90% noncondensing

Certifications
FCC, IC, CE

Compatibilidad: UISP-FIBER-OLT-XGS, UF-OLT-4, UF-OLT

LEDS

PON status(3) signal LEDs
All-OFF: bootup
1x red: signal too low (< -28 db)
1x white: signal low (>= -28 db)
2x white: signal good (>= -25 db)
3x white: signal strong (>= -11 db)
1x red + 2x white: signal too strong (>= -8 db)
3x red: no signal
LEDs alternate between red and a signal strength indicator: No authority
EthernetSteady white: link up
Blinking white: activity
OFF: link down
PowerWhite: ON
FIBER

Operating wavelength
TX
RX
1310 nm
1490 nm
Line codeScrambled NRZ
Optical interface nominal bit rate
Downstream
Upstream
2488.32 Mbit/s
1244.16 Mbit/s
Physical reach20 km
SOFTWARE

Mode
ONU/ONT layer 2/3 Ethernet switch

Services
Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features

Utilities
Dashboard, monitoring, alarms, and logs

Security
GEM Port Encryption

Other
Remote reset, remote reboot, remote firmware upgrade, VLAN support
