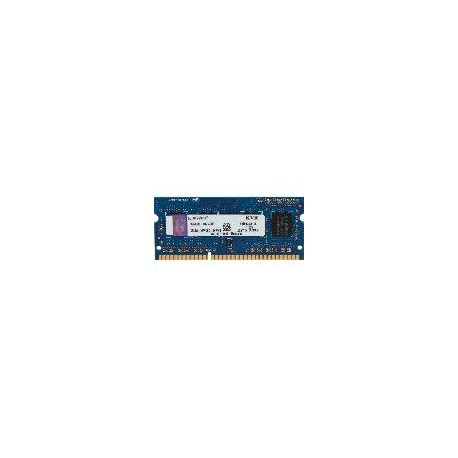

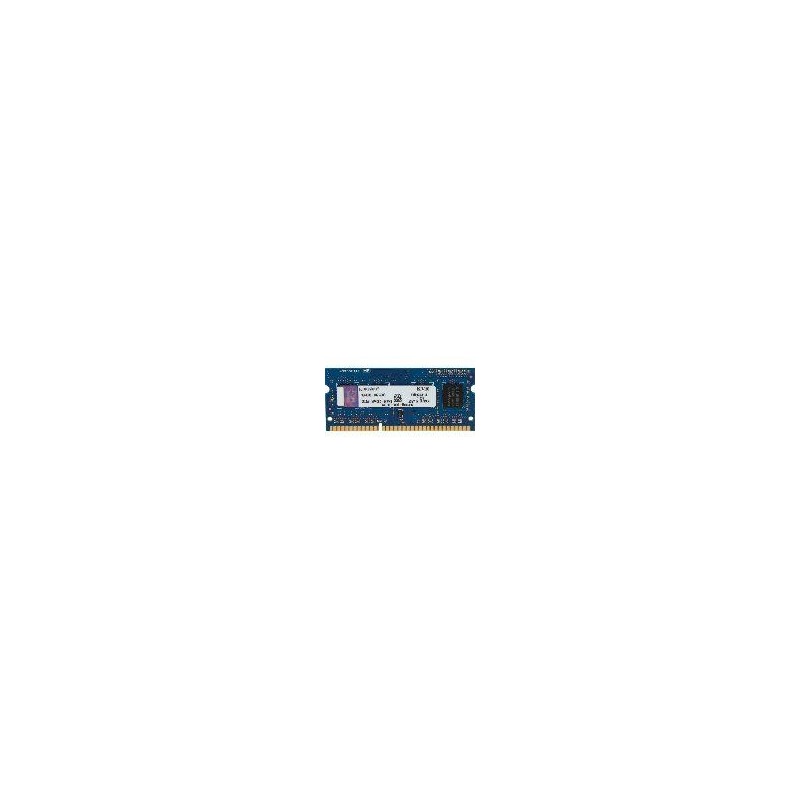

KINGSTON MEMORIA PORTATIL SODIMM 4GB DDR3L 1600Mhz

General
MarcaKINGSTON
Garantía2
Part NumberKVR16LS11/4
CategoríasMEMORIAS RAM
Memoria
Tipo de memoria internaDDR3
RAM4 GB
Forma de factor de memoria204-pin SO-DIMM
Frecuencia1600 MHz
Memory layout (modules x size)1 x 4 GB
Latencia CASCL11
Bus de memoria64 Bit
Componente paraPortátil
Configuración de módulos512M x 64
ECCNo
Placa de plomoOro
RegistradoNo
Tiempo activo en fila35 ns
Tiempo de actualización de ciclo de fila260 ns
Tiempo de ciclo de fila125 ns, 48
Detalles técnicos
Disposición de memoria1 x 4096 MB
GarantíaLifetime
Indicación de errorNo-ECC
Memoria interna4096 MB
Montaje en rack204-pin SODIMM
Organización de los chipsX8
Velocidad del reloj de bus1600 MHz
Condiciones ambientales
Intervalo de temperatura de almacenaje-55 - 100 °C
Intervalo de temperatura operativa0 - 85 °C
Control de energía


DESCRIPTION This document describes ValueRAMs 512M x 64-bit (4GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low voltage, memory module, based on eight 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.35V or 1.5V. This 204-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
? JEDEC standard 1.35V and 1.5V Power Supply
? VDDQ = 1.35V and 1.5V
? 800MHz fCK for 1600Mb/sec/pin
? 8 independent internal bank
? Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
? Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
? 8-bit pre-fetch
? Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
? Bi-directional Differential Data Strobe
? Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
? On Die Termination using ODT pin
? Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE = 95°C
? Asynchronous Reset
? PCB: Height1.18” (30mm), double sided component
? Lead Free RoHS Compliant Document No. VALUERAM1347-001.E00
