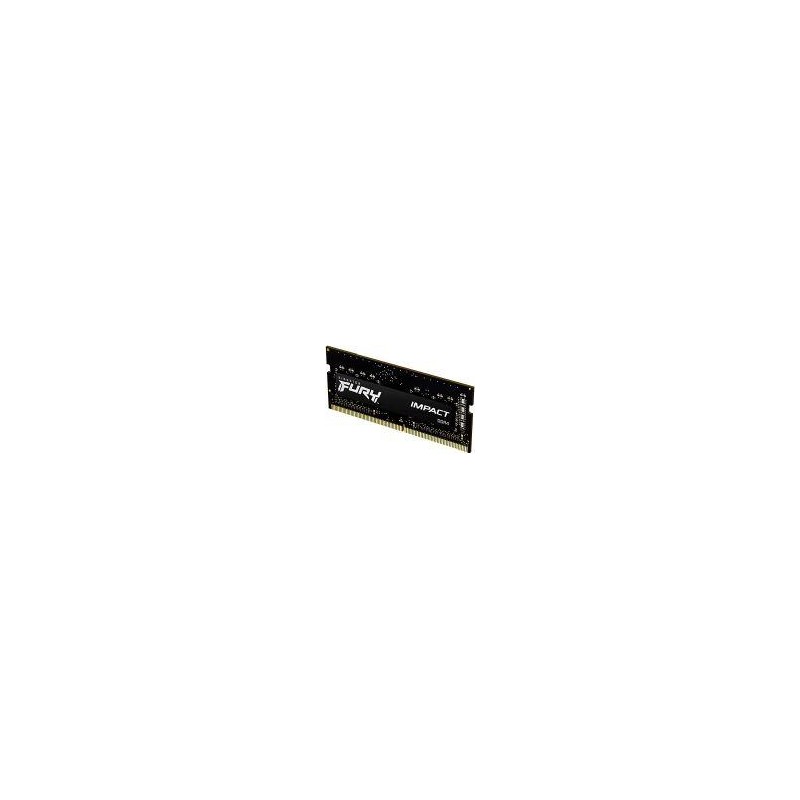

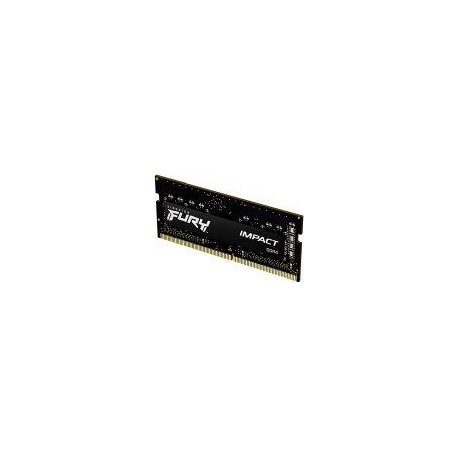

KINGSTON MEMORIA SODIMM FURY IMPACT DDR4 16GB 3200MHZ CL20

KF432S20IB/16
16GB 2G x 64-Bit
DDR4-3200 CL20 260-Pin SODIMM
Continued >>
FEATURES
FURY KF432S20IB/16 is a 2G x 64-bit (16GB) DDR4-3200 CL20
SDRAM (Synchronous DRAM) 1Rx8, memory module, based on
eight 2G x 8-bit FBGA components per module. Each module kit
supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0.
Each module has been tested to run at DDR4-3200 at a low latency
timing of 20-22-22 at 1.2V. Additional timing parameters are
shown in the Plug-N-Play (PnP) Timing Parameters section
below. The JEDEC standard electrical and mechanical
specifications are as follows:
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
20 cycles
45.75ns(min.)
350ns(min.)
26.25ns(min.)
94 V - 0
0o
C to +85o
C
-55o
C to +100o
C
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR4-3200 CL20-22-22 @1.2V
• XMP Profile #1: DDR4-3200 CL20-22-22 @1.2V
• XMP Profile #2: DDR4-2933 CL17-19-19 @1.2V
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.18” (30.00mm
