TP-LINK INJECTOR POE TL-POE2412G

HARDWARE FEATURES

Interface

2 x 10/100/1000Mbps RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

1 x 24VDC PoE Port

Network Media

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100O STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100O STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Power Supply

12W (Max. 24VDC)

LED Indicator

Power (PWR)

Dimensions ( W x D x H )

3.4 x 1.7 x 1.4 in.

( 85.8mm x 43.9mm x 35mm)

OTHERS

Certification

FCC, RoHS

Package Contents

24V, 12W Passive PoE Adapter TL-POE2412G

Power Cord

Wall Mounting Kits

Environment

Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

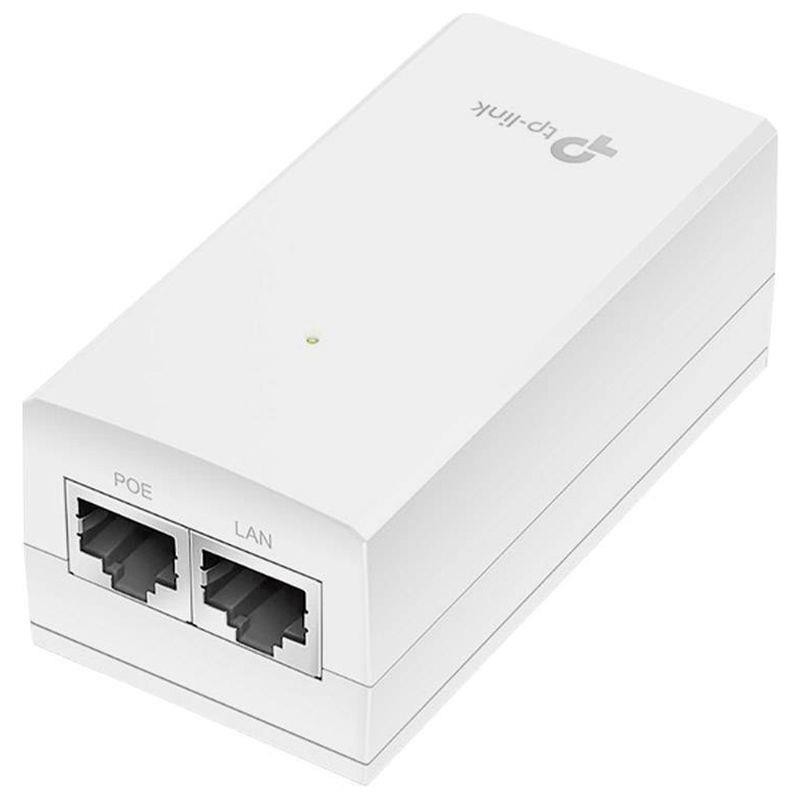

Gigabit 24VDC Passive PoE Adapter

TL-POE2412G

Gigabit Ethernet ports

24VDC passive PoE supported

Auto-adjusted power depends on requirements

Convenient wall-mounting design

Plug-and-Play, no configuration required
