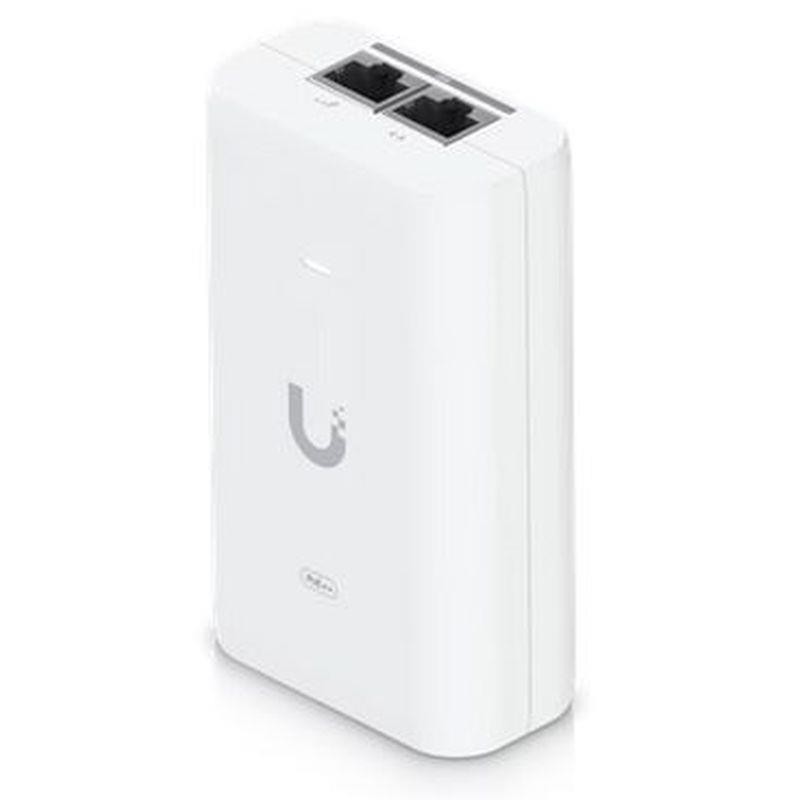

UBIQUITI ADAPTADOR UACC-PoE+-2.5G 30W BLANCO

UACC-PoE+-2.5G
2.5G PoE+ Adapter (30W)

Un adaptador que puede alimentar dispositivos UniFi PoE+, reducir la dependencia de la alimentación del conmutador PoE y proporcionar una conexión LAN Multi-Gigabit.

-Suministra hasta 30 W de PoE+.
-Protección contra sobretensiones, picos de pulsos y sobrecorriente
-Contiene entrada de datos RJ45, cable de CA con toma de tierra y salida PoE+
-Indicador LED para monitorizar el estado

Apto para modelos como:

U7-Pro
U7-Outdoor
U7-Pro-Max
U7-Pro-Wall
U7-Pro-Outdoor
U6-Enterprise-IW
U6-Enterprise
etc

Dimensions93 x 62 x 35 mm (3.7 x 2.4 x 1.4)
Weight156 g (5.5 oz)
Output voltage48V DC @ 0.65A
LAN activity indicatorNo
Gigabit LAN portYes, up to 2.5 GbE
Remote reset capabilityNo
Reset buttonNo
Rated voltage100—240V AC @ 50/60Hz
Input current0.75A max.
Inrush current<150A peak @ 230V AC
Efficiency>87%
Output ripple1% max.
Switching frequency65 kHz max.
Line regulation= 1%
Load regulation= 3%
2-pair poweringPins 4, 5 (+) and 7, 8 (-)
4-pair poweringNo
Data In / PoERJ45 shielded socket
Surge protectionDifference and common mode
Clamping protection11V data, 60V power
Max. surge discharge1500A (8/20 µs) power
Peak pulse current36A (10/1000 µs) data
Shunt capacitance<5 pF data
Response time<1 ns
Ambient operating temperature0 to 40° C (32 to 104° F)
Storage temperature-30 to 70°C (-22 to 158° F)
Ambient operating humidity10 to 95% noncondensing
CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS
