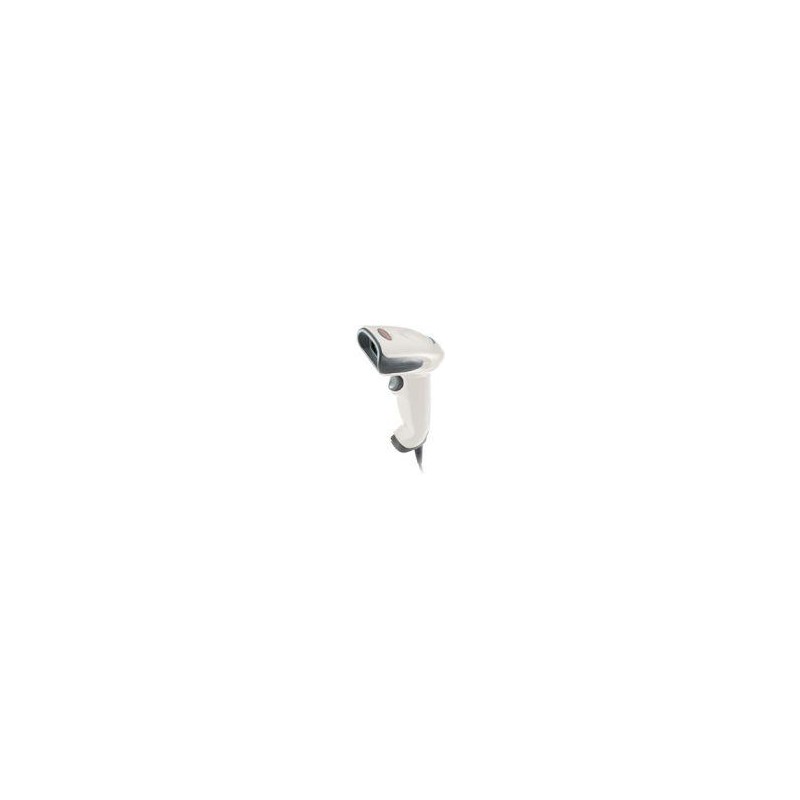

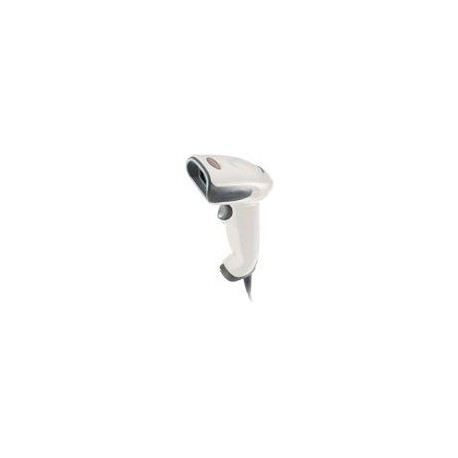

HONEYWELL LECTOR DE CODIGO VOYAGER 1450G2D-1USB-1 2D BLANCO

Voyager 1450g Technical Specifications
Typical Performance*
Narrow Width
5 mil Code 39
13 mil UPC
20 mil Code 39
6.7 mil PDF417
10 mil DM**
20 mil QR
Depth of Field
45 – 107 mm (1.8 – 4.2”)
37 – 260 mm (1.4 – 10.2”)
42 – 360 mm (1.6 – 14.2”)
42 – 107 mm (1.6 – 4.2”)
42 – 107 mm (1.6 – 4.2”)
32 – 210 mm (1.2 – 8.3”)
* Performance may be impacted by bar code quality and
environmental condition
** Data Matrix (DM)
Mechanical
Dimensions (LxWxH) 62 mm x 169 mm x 82 mm (2.4” x 6.6” x 3.2”)
Weight 130g (4.6 oz)
Electrical
Input Voltage 4.0 to 5.5 VDC
Operating Power 2 W (400mA @ 5 VDC)
Standby Power 0.45 W (90mA @ 5 VDC)
Host System Interface USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Environmental
Operating Temperature¹ 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity Up to 95% relative humidity, non-condensing
Drop Designed to withstand 30 1.5m (5’) drops to concrete
Environmental Sealing IP40
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (640 x 480 pixel array)
Motion Tolerance Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal 37.8°; Vertical 28.9°
Symbol Contrast 35% minimum reflectance difference
Pitch, Skew ±60°, ±70°
Decode Capability 1450g1D: All standard 1D symbologies
1450gPDF: All standard 1D and PDF417 symbologies
1450g2D: All standard 1D, PDF417, and 2D symbologies
