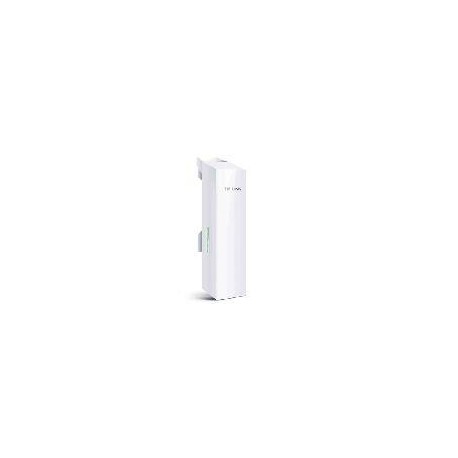

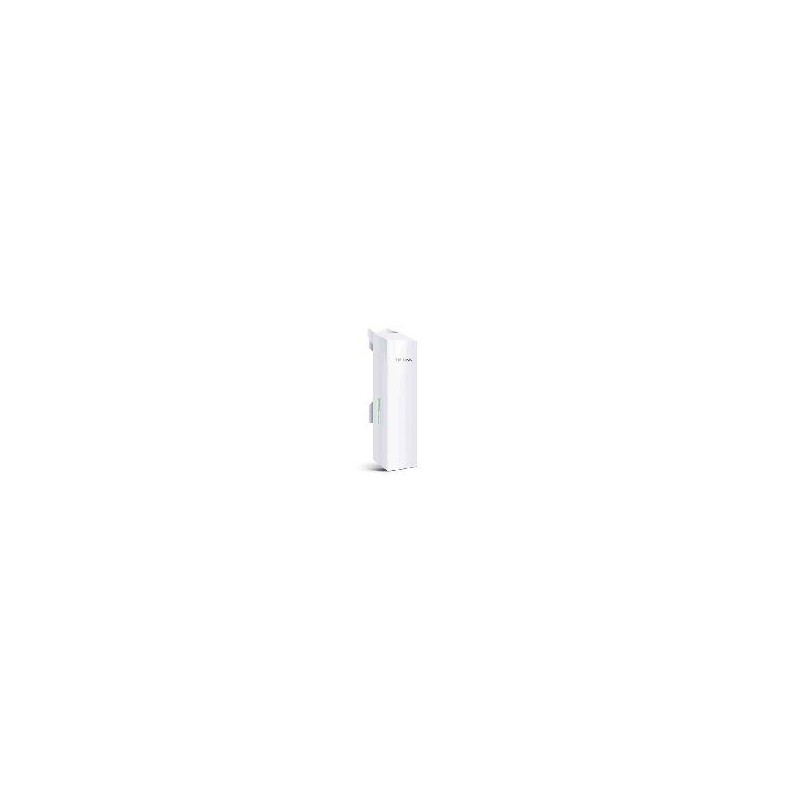

TP-LINK PUNTO DE ACCESO EXT. 300MBPS 2.4GHZ 9DBI

ProcessorQualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash
Interfaces1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE
Passthrough)
1 Grounding Terminal
1 Reset Button
Dimensiones (W X D X H)224 x 79 x 60 mm
Tipo de antenaBuilt-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 35° (E-Plane)
Note: For more details, please refer to datasheet
Protección15KV ESD Protection
6000V Lightning Protection
Consumo de potencia10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Fuente de alimentaciónPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
EnclosureOutdoor ASA stabilized plastic material
IPX5 waterproof Certification
CARACTERÍSTICAS INALÁMBRICAS
Estándares InalámbricosIEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frecuencia2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Sensibilidad de Recepción• 802.11b:
11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm
• 802.11g:
54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm
• 802.11n:
MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm,
MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm,
MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm,
MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm,
MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Potencia de transmisión27dBm/500mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
