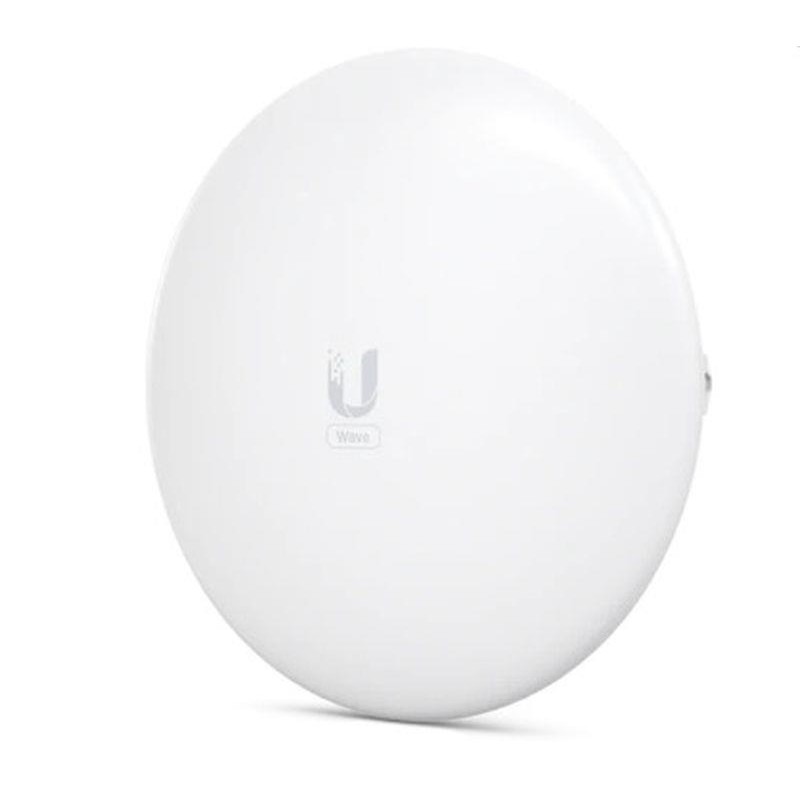

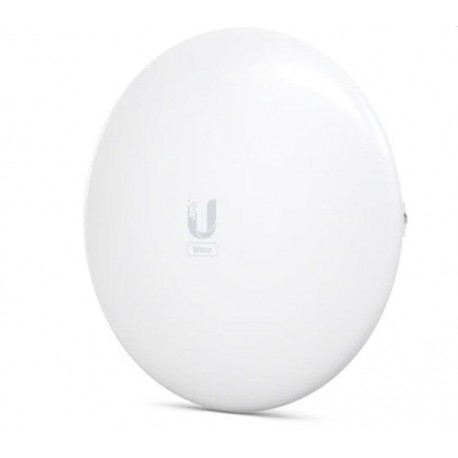

UBIQUITI PUNTO DE ACCESO WAVE NANO 60 GHZ

Ubiquiti WAVE-NANO 60 GHz tecnología Wave. PtP entre dos de ellos y CPE si se conecta a WAVE-AP o WAVE-AP-MICRO, rendimiento de 2 Gbps (1 Gbps dúplex). Enlaces de 5km. Radio de reserva de 5 GHz, Bl
Ubiquiti WAVE-NANO 60 GHz tecnología Wave. PtP entre dos de ellos y CPE si se conecta a WAVE-AP o WAVE-AP-MICRO, rendimiento de 2 Gbps (1 Gbps dúplex). Enlaces de 5km. Radio de reserva de 5 GHz, Bl
[WAVE-NANO]
Añadir a la Cesta

UBIQUITI WAVE-NANO
60 GHz tecnología Wave. PtP (a partir de firmware 3.2.0) y CPE en PtMP con AP Wave o AP Wave Micro. Rendimiento 2 Gbps (1 Gbps dúplex) en enlaces hasta 5km PtMP. Radio de reserva de 5 GHz, Bluetooth y GPS. Compatible con modo router

Puede actuar como:

-CPE/cliente en PtMP junto al WAVE-AP como AP emisor (hasta 5 Km.) o con WAVE-AP-MICRO (hasta 4 km.)

-PtP entre dos de ellos (a partir de firmware 3.2.0)

Radio de reserva de 5 GHz, Bluetooth y GPS.
Compatible con modo router

Mechanical
DimensionesØ256.5 x 113.5 mm (Ø10.1 x 4.5)
PesoWithout mount: 932 g (2.1 lb)
With mount: 1.2 kg (2.6 lb)
Material de carcasaAluminum alloy, UV stabilized plastic
Material de soporteAluminum alloy, UV stabilized plastic
Diametro de mástil25 to 63.5 mm (1 to 2.5) on pipe outer diameter
Carga al viento127 N at 200 km/h (28.6 lbf at 125 mph)
WeatherproofingIPX6
Hardware
ProcessorDual ARM® Cortex®-A53 cores at 1GHz
MemoryDDR3L 512MB
Networking interface(1) GbE RJ45 port
Max. power consumption18W
Power method48VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)
24VDC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply48VDC, 0.65A gigabit PoE adapter (included)
Can be powered by a UISP Router or UISP Switch
ButtonFactory reset
LEDsPower, Ethernet, GPS, link
Operating temperature-40 to 60° C (-40 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
Software
OSairOS®
Operating modePtMP station
Ubiquiti specific featuresIntegrated 60 GHz radio, discovery protocol, Wave technology
ServicesUISP, ping watchdog, NTP client, SNMP
ToolsAntenna alignment, discovery utility, ping, trace route, speed test
NetworkBridge/Router mode
Software managementBluetooth management for easy setup over UISP app
WEB UI
Minimum software requirementsAny modern web browser/iOS or Android based smartphone
System
Total throughput2 Gbps (1 Gbps duplex)
Maximum range5+ km
EncryptionWPA2-PSK (AES)
RF
Operating frequency*57 to 71 GHz
*Depends on regulatory region.
GPSYes
Channel bandwidth2160, 1080 MHz
Operating channels*58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz
*Depends on regulatory region.
Modulation16QAM, QPSK
Antenna gain41 dBi
Azimuth and elevation beamwidth3 dB: 1°
6 dB: 1.4°
Back-Up RF
Operating frequency*
US/CA

Worldwide
U-NII-1 5150 - 5250 MHz
U-NII-3 5725 - 5850 MHz
5150 - 5875 MHz
*Depends on regulatory region.
Channel bandwidth20, 40, 80 MHz
ModulationBPSK (1/2), QPSK (1/2), QPSK (3/4), 16QAM (1/2), 16QAM (3/4), 64QAM (2/3), 64QAM (3/4), 64QAM (5/6), 256QAM (3/4), 256QAM (5/6), 1024QAM (3/4), 1024QAM (5/6)
Antenna gain19 dBi
PolarizationDual-linear
Cross-pol isolation20 dB
BeamwidthAzimuth: 3 dB BW 14 to 17°
Elevation: 3 dB BW 14 to 17°
Azimuth and elevation beamwidth3 dB: 14 to 17°
LEDs
PowerFlashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress
EthernetFlashing blue: Ethernet traffic detected
GPSBlue: receiving at least (4) GPS satellite signal
LinksWhite: 5GHz link
Blue: 60GHz link
