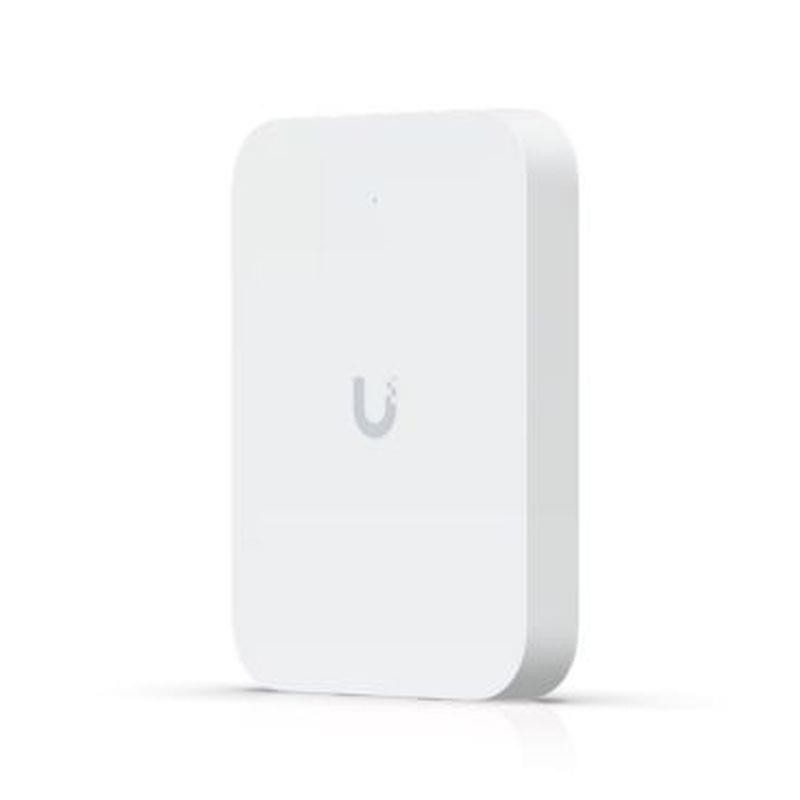

UBIQUITI PUNTO DE ACCESO U7-IW WI-FI 7 MONTAJE EN PARED

U7-IW
Punto de acceso WiFi 7 de montaje en pared. 4 transmisiones espaciales y un switch de 2 puertos de 2.5 GbE PoE integrado. 2x2 MU-MIMO en 2,4 y 5GHZ. Ganancia 8 dbi 2,4 y 4 dbi en 5GhZ. Max.client 200

NOTA: inyector Poe no incluido, se recomienda modelo PoE+ con puerto 2,5G como UACC-PoE+-2.5G-EU


Dimensions
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2)

WIRELESS

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
115 m² (1,250 ft²)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting Locations
Wall
Mounting Plate
Metal wall mount (Included)

Power Method
PoE PoE+ (Required for PoE output)

PERFORMANCE

MIMO
5 GHz 2 x 2 (DL/UL MU-MIMO)
2.4 GHz 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz 4.3 Gbps (BW240)
2.4 GHz 688 Mbps (BW40)

Antenna Gain
5 GHz 8 dBi
2.4 GHz 4 dBi



Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

FEATURES

Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Advanced Radio Management
Yes
Passpoint (Hotspot 2.0)
Yes
Captive Hotspot Portal
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes

Hardware
Max. Power Consumption
13W (Excluding PoE output)
Supported Voltage Range
42.5—57V DC

Networking Interface
(3) 2.5 GbE RJ45 ports

Weight
400 g (14.1 oz)

Management
Ethernet

Built-In Switch
(1) PoE+ input and (1) PoE output

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Aluminum alloy

LEDs
System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software Application Requirements
UniFi Network Version 9.0.114 and later


UniFi OS
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
