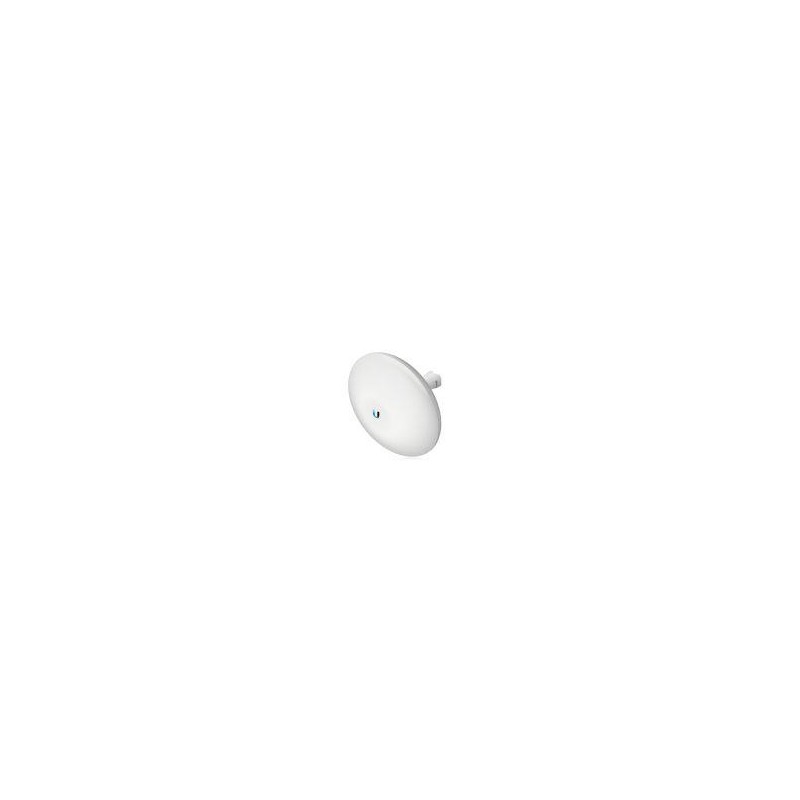

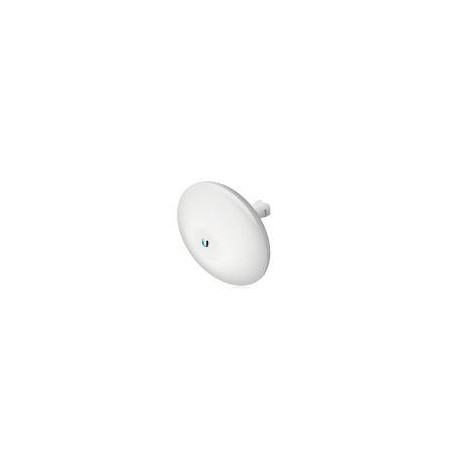

UBIQUITI PUNTO DE ACCESO NANOBEAM AC 5GHZ 19DBI

Specifications
NBE-5AC-Gen2
Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92)
Weight (Mount Included) 0.530 kg (1.17 lb)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 8.5W
Gain 19 dBi
Networking Interface (2) 10/100/1000 Ethernet Ports
Wi-Fi for Management
Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 8 MB Flash
LEDs Power, Ethernet, (4) Signal Strength
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR 1.5:1
Channel Sizes PtP Mode PtMP Mode
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included), Wall-Mount
Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Operating Frequency (MHz)
Worldwide 5150 - 5875
USA U-NII-1:
5150 - 5250
U-NII-2A:
5250 - 5350 MHz
U-NII-2C:
5470 - 5725 MHz
U-NII-3:
5725 - 5850
Management Radio (MHz)
Worldwide 2412 - 2472
USA 2412 - 2462
NBE-5AC-Gen2 Output Power: 25 dBm
TX Power Specifications RX Power Specifications
Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance airMAX ac
1x BPSK (½) 25 dBm ± 2 dB
airMAX ac
1x BPSK (½) -96 dBm ± 2 dB
2x QPSK (½) 25 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB
2x QPSK (¾) 25 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB
4x 16QAM (½) 25 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB
4x 16QAM (¾) 25 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB
6x 64QAM (2/3) 24 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB
6x 64QAM (¾) 23 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB
6x 64QAM (5/6) 22 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB
8x 256QAM (¾) 21 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB
8x 256QAM (5/6) 20 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB

https://dl.ubnt.com/datasheets/NanoBeam_ac/NanoBeam_AC_Gen2_DS.pdf
