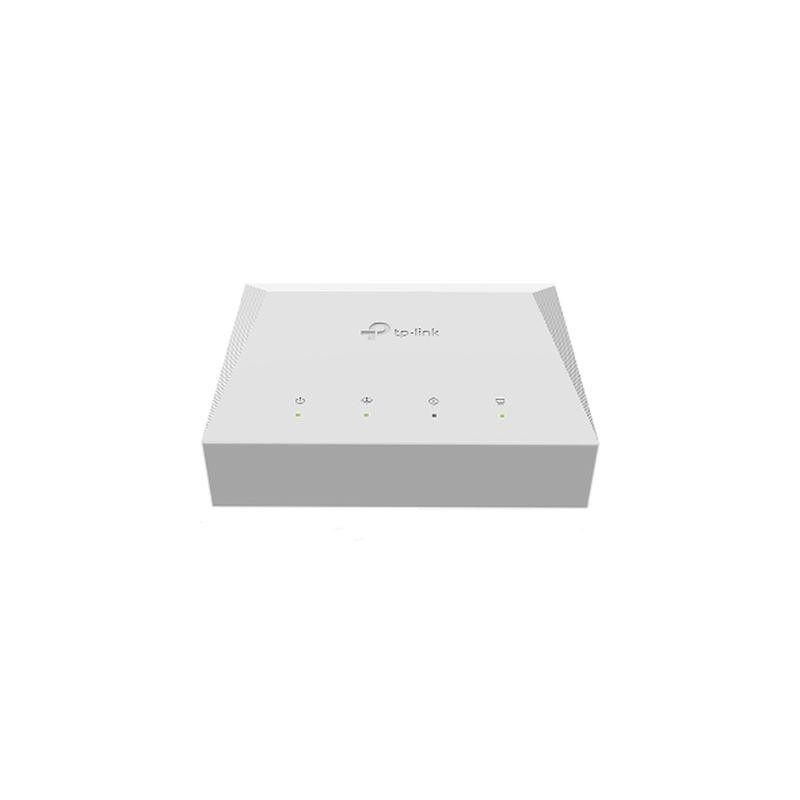

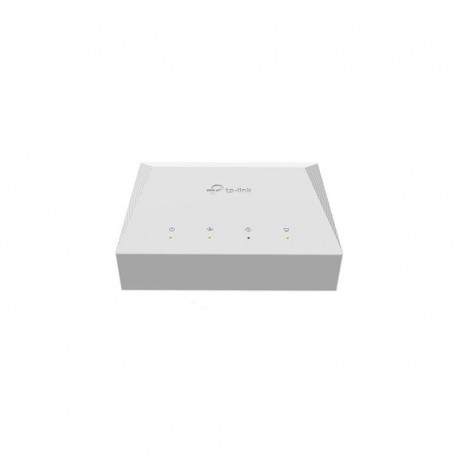

TP-LINK ROUTER FIBRA XZ000-G7

Conectividad: 1 SC/APC PON Port + 1 puertos Gigabit LAN Ethernet.
Compatibilidad VLAN: 802.1Q TAG VLAN, VLAN Transparent/VLAN Translation/VLAN Trunk.
Autenticación: Basada en Serial Number o Password.
Gestión Remota: OMCI.
ITU-T G.984/G.988 GPON: Compatible con los estándares de la Industria. Compatibilidad con gestión OMCI. Compatible con OLTs de Terceros.
CARACTERÍSTICAS DE HARDWARE
Interfaz1 PON Port
1 10/100/1000 Mbps RJ45 Port
Botones1 RESET Button
Fuente de Alimentación Externa9VDC/0.6A
Estándares InalámbricosIEEE 802.3, 802.3u, 802.1p, 802.1Q
Tasa de TransferenciaDownstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*
Dimensiones3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distancia0–20 Km Max
Estándares GPONITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Módulo ÓpticoClass B+
ReceptorSuper-TIA
TransmisorDFB Laser
Longitud de OndaUpstream: 1310 nm
Downstream: 1490 nm
CARACTERÍSTICAS DE SOFTWARE
Características AvanzadasUpstream and Downstream FEC,
Dynamic Bandwidth Allocation(DBA) support NSR/SR,
Up to 16 T-CONTs and 256 GEM Ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism
VLAN802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode, Authentication based on SN and Password, VLAN Auto Detect
SeguridadAES Encryption, Packet Filter based on VLAN
GestiónLocal management: WebGUI, Telnet
Remote management: OMCI
IGMPIGMP v1/v2/v3
OTROS
Contenido del PaqueteXZ000-G7
Power Adapter
RequisitosMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
CertificacionesCE, RoHS
Factores AmbientalesOperating Temperature: 0?–40? (32?–104?)
Storage Temperature: -40?–60? (-40?–140?)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
