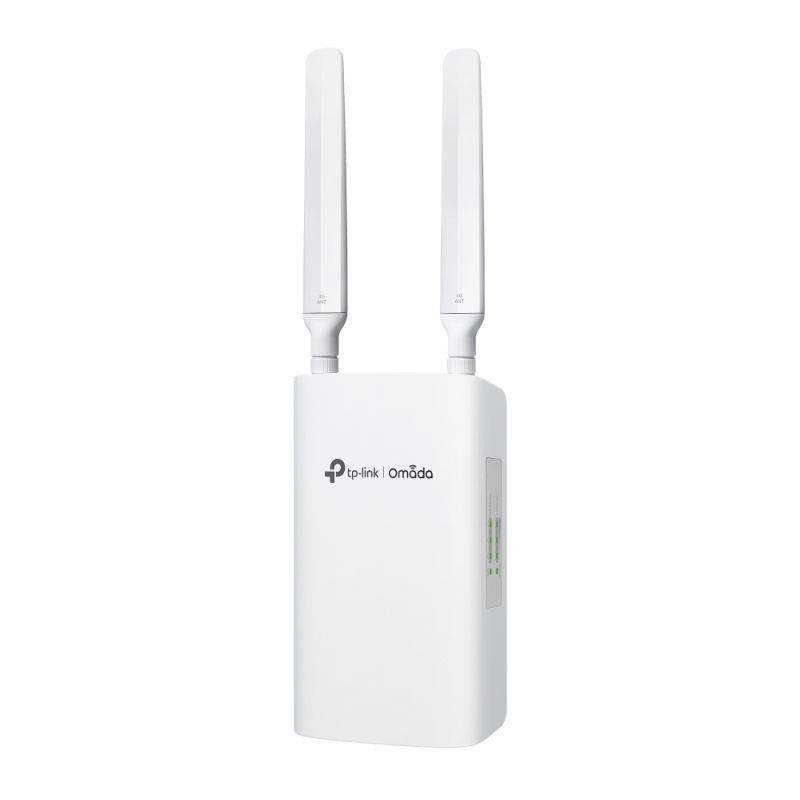

TP-LINK ROUTER ER703WP-4G-OUTDOOR OMADA AX3000 ROUTER

Router VPN Gigabit Omada 4G+ Cat6 Wi-Fi 6 AX3000 Interior/Exterior
4G+ Cat6 hasta 300 Mbps*.
AX3000 Wi-Fi 6 con 2402 Mbps en 5GHz y 574 Mbps en 2.4GHz†#
3 × puertos WAN/LAN Gigabit (2 × salida PoE, 1 × entrada PoE)
1 × ranura para tarjeta Nano SIM
Fuente de alimentación 802.3at/bt PoE o 12V/2A DC
Copia de seguridad automática de WAN 4G y Ethernet con equilibrio de carga
IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN§
Gestión centralizada
Resistente a la intemperie IP55
4G
Network TypeLTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9
00/800/700/1450 MHz)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8
(2100/1800/850/900 MHz)
Carrier Aggregation:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
B5+B5/B7/B38/B40/B41
B7+B7/B8/B20/B28/B32
B8+B32/B38/B40/B41
B20+B32/B38/B40
B28+B32/B38/B40/B41
B38+B38
B40+B40
B41+B41
SIM Type1× Nano SIM Card
Frequency• Downlink: 300 Mbps;
• Uplink: 50 Mbps
SEGURIDAD
DPIApplication control via DPI / Updated app library
Control de AccesoSource/Destination IP Based Access Control
Filtrado• Web Group Filtering
• URL Filtering
• Web Security
Inspección ARP• Sending GARP Packets
• ARP Scanning
• IP-MAC Binding
Defensa contra Ataques• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
CARACTERÍSTICAS DE HARDWARE
Interfaz• 3 Gigabit WAN/LAN Ports
Medios de Red• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
BotonesReset Button
Fuente de Alimentación802.3at/bt PoE; 12VDC / 2A Power Adapter
Frecuencia wifi y tasa de señal• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)
Flash256 MB NAND
DRAM512 MB DDR4
LED4G Signal, WLAN, WAN/LAN, SYS
Dimensiones6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenas• Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in
antennas
• LTE: Two 4.0dBi omnidirectional detachable antennas
MontajePole/Wall-Mounting
Consumo de Potencia MáximoPOE:62.9W max @ 220V/50Hz 25?
DC: 16.6W max @ 220V/50Hz 25?
RENDIMIENTO
DPI Throughput• TCP: 1131 Mbps
• UDP: 974 Mbps
GRE• Unencrypted: 450.3Mbps
• Encrypted: 277.6Mbps
WireGuard VPN462.8Mbps
Sesiones Concurrentes120,000
Nuevas sesiones/Segundos3,800
NAT (IP Estática)945.9Mbps / 950.2Mbps
NAT(DHCP)947.3Mbps / 949.4Mbps
NAT(PPPoE)916.9Mbps / 946.3Mbps
NAT (L2TP)878.9Mbps / 778.9Mbps
NAT (PPTP)852.2Mbps / 775.9Mbps
Rendimiento VPN IPsec• ESP-SHA1-AES256: 568.3Mbps
• ESP-SHA256-AES256: 559.8Mbps
• ESP-SHA384-AES256: 565.6Mbps
• ESP-SHA512-AES256: 550.0 Mbps
OpenVPN85.1Mbps
Rendimiento VPN L2TP• Unencrypted: 858.7Mbps
• Encrypted: 467.0Mbps
Rendimiento VPN PPTP• Unencrypted: 876.2Mbps
• Encrypted: 182.6Mbps
Rendimiento VPN SSL86.6Mbps
66 Byte Packet forwarding rate1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate81275 pps / 81275 pps
CARACTERÍSTICAS INALÁMBRICAS
Funciones Avanzadas• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU-MIMO
• Rate Limit: Based on SSID/Client
• Airtime Fairness
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Multiple SSIDs: 16 in total (8 per radio)
Red de InvitadosSupport
FUNCIONES BÁSICAS
Tipo de conexión WAN• Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
Clonado MACModify WAN Address
DHCP• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
SMSReceive / Send SMS
IPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
FUNCIONES AVANZADAS
ACLIP/Port/Protocol/Domain Name Filtering
Enrutamiento Avanzado• Static Routing
• Policy Routing
• RIP
• OSPF
Control de Ancho de BandaIP-Based Bandwidth Control
Balanceo de Carga• Intelligent Load Balance
• Application Optimized Routing
• Link Backup(Timing, Failover)
• Online Detection
NAT• One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Límite de sesiónIP-Based Session Limit
VPN
GREOnly in Standalone Mode
SSL VPN50 Tunnels
VPN IPsec• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
VPN PPTP• PPTP VPN Server
• PPTP VPN Client (10)
• 50 Tunnels
• PPTP with MPPE Encryption
VPN L2TP• L2TP VPN Server
• L2TP VPN Client (10)
• 50 Tunnels
• L2TP over IPSec
OpenVPN• OpenVPN Server
• OpenVPN Client (5)
• 55 OpenVPN Tunnels
• Certificate + Account Mode
• Full Mode
WireGuard VPN• 20 Tunnels
AUTENTICACIÓN
Autenticación web• No Authentication
• Simple Password
• Hotspot (Local User / Voucher / SMS / Radius)
• External Radius Sever
• External Portal Sever
• LDAP
GESTIÓN
Omada AppYes.
Gestión Centralizada• Omada Cloud Essentials
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Acceso a la nubeYes.
ServicioDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Mantenimiento• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Funciones de gestión• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
Otros
CertificacionesCE, FCC, RoHS
Contenido del Paquete• ER703WP-4G-Outdoor
• Mounting Kits
• Quick Installation Guide
Requisitos del sistema• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Factores Ambientales• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 5% to 95% non-condensing
• Storage Humidity: 5% to 90% non-condensing
