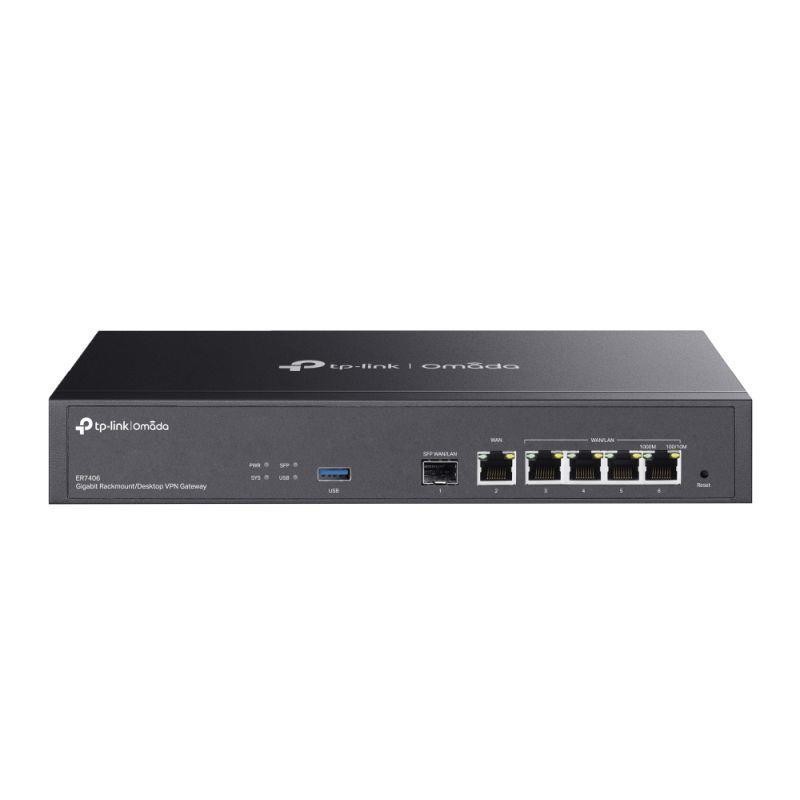

TP-LINK ROUTER ER7406 OMADA MULTIGIGABIT

Router VPN Omada Multi-Gigabit
1× puerto WAN/LAN Gigabit SFP
5 puertos Gigabit RJ45 (1 WAN, 4 WAN/LAN)
1 puerto USB 3.0 (admite almacenamiento USB y copia de seguridad LTE con dongle LTE)
El balanceo de carga en los 5 puertos WAN aumenta la tasa de utilización de la banda ancha multilínea
VPN de alta seguridad SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP y OpenVPN
Gestión centralizada en la nube a través de la web o de la aplicación Omada*.
Protección DoS/DDoS, filtrado IP/MAC/URL, DPI e IPS/IDS para una mayor seguridad.
Montaje en rack/sobremesa
SEGURIDAD
Control de AccesoSource/Destination IP Based Access Control
Filtrado• WEB Group Filtering§
• URL Filtering
• Web Security§
Inspección ARP• Sending GARP Packets
• ARP Scanning§
• IP-MAC Binding
Defensa contra Ataques• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
CARACTERÍSTICAS DE HARDWARE
Estándares y Protocolos• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interfaz• 1 Gigabit SFP WAN/LAN Port
• 1 Gigabit WAN Port
• 4 Gigabit LAN/WAN Ports
• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
Medios de Red• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Cantidad de VentiladoresFanless
BotonesReset Button
Fuente de Alimentación100-240VAC, 50/60Hz
Flash128 MB NAND
DRAM512 MB DDR4
LEDPWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
Dimensiones11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
Protección4 kV surge protection
CarcasaSteel
Montaje• Desktop
• Rackmountable
Consumo de Potencia Máximo• 7.5 W (with USB 3.0 connected)
• 4.5 W (without USB 3.0 connected)
RENDIMIENTO
IPS ThroughputTCP: 229 Mbps;
UDP: 188 Mbps
DPI ThroughputTCP: 933 Mbps;
UDP: 927 Mbps
GRE• Unencrypted: 611.9 Mbps
• Encrypted: 325.0 Mbps
WireGuard VPN341.3 Mbps
Sesiones Concurrentes150,000
Nuevas sesiones/Segundos5,300
NAT (IP Estática)945.3 Mbps / 940.5 Mbps
NAT(DHCP)939.6 Mbps / 940.9 Mbps
NAT(PPPoE)943.6 Mbps / 940.9 Mbps
NAT (L2TP)880.1 Mbps / 859.0 Mbps
NAT (PPTP)855.0 Mbps / 907.2 Mbps
Rendimiento VPN IPsec• ESP-SHA1-AES256: 617.1 Mbps
• ESP-SHA256-AES256: 592.8 Mbps
• ESP-SHA384-AES256: 592.4 Mbps
• ESP-SHA512-AES256: 604.5 Mbps
OpenVPN139.1 Mbps
Rendimiento VPN L2TP• Unencrypted: 977.4 Mbps
• Encrypted: 334.6 Mbps
Rendimiento VPN PPTP• Unencrypted: 1064.1 Mbps
• Encrypted: 206.8 Mbps
Rendimiento VPN SSL131.6 Mbps
66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate81,279 pps / 81,275 pps
FUNCIONES BÁSICAS
Tipo de conexión WAN• Static IP
• Dynamic IP
• PPPoE(supports MRU Configuration)
• PPTP
• L2TP
Clonado MACModify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
DHCP• DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
FUNCIONES AVANZADAS
Enrutamiento Avanzado• Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)
Control de Ancho de BandaIP-based Bandwidth Control
Balanceo de Carga• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT• One-to-One NAT
• Multi-Net NAT
• Port Forwarding
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Límite de sesiónIP-based Session Limit
VPN
GREv (Only in Standalone Mode)
SSL VPN50 Tunnels
VPN IPsec• 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
VPN PPTP• PPTP VPN Server
• PPTP VPN Client (10)**
• 50 Tunnels
• PPTP with MPPE Encryption
VPN L2TP• L2TP VPN Server
• L2TP VPN Client (10)**
• 50 Tunnels
• L2TP over IPSec
OpenVPN• OpenVPN Server
• OpenVPN Client (5)**
• 55 OpenVPN Tunnels
• Certificate + Account Mode
• Full Mode
WireGuard VPN• 20 Tunnels
AUTENTICACIÓN
Autenticación web• No Authentication
• Simple Password*
• Hotspot (Local User /Voucher*/ SMS/Radius*)
• External Radius Server
• External Portal Sever<*
• LDAP§
GESTIÓN
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nubeYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
ServicioDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Mantenimiento• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute) (only in Standalone Mode)
• NTP Synchronize (only in Standalone Mode)
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Aprovisionamiento sin contactoYes. Requires the use of Omada Cloud-Based Controller.
Funciones de gestión• Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*
Otros
CertificacionesCE, FCC, RoHS
Contenido del Paquete• ER7406
• Power Cord
• Quick Installation Guide
• Rackmount Kit
Requisitos del sistema• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
• MAC OS, NetWare, UNIX or Linux
Factores Ambientales• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing
