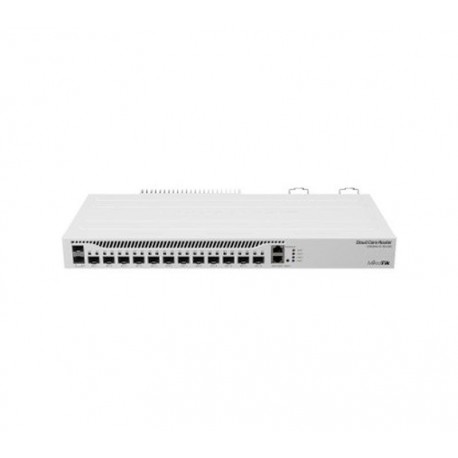

MIKROTIK ROUTER CCR2004-1G-12S+2XS

CCR2004-1G-12S+2XS
Router empresarial con 12x SFP+ y 2x SFP28 (10 y 25 Gbps respectivamente) en un mismo dispositivo

Cloud Core Router 2004-1G-12S+2XS con CPU Annapurna Alpine AL32400 Cortex A57 (4 núcleos, 1,7GHz por núcleo), 4GB de RAM, 1 puerto Gigabit RJ45, 12x SFP+ de 10G, 2x SFP28 de 25G, RouterOS L6, caja de montaje en rack 1U y fuente de alimentación dual

Con un rendimiento parejo a las afamadas series CCR1009/CCR1016 , dispone también de fuente de alimentación redundante

Product code
CCR2004-1G-12S+2XS

Architecture
ARM 64bit

CPU
AL32400

CPU core count
4

CPU nominal frequency
1700 MHz

Dimensions
443 x 224 x 44 mm

License level
6

Operating System
RouterOS

Size of RAM
4 GB

Storage size
128 MB

Storage type
NAND

Tested ambient temperature
-20°C to 60°C


Powering Details
Number of AC inputs:2
AC input range: 100-240
Max power consumption 49 W
Max power consumption without attachments 32 W

Ethernet Details
10/100/1000 Ethernet ports 1

Fiber Details
SFP+ ports 12
Number of 25G SFP28 ports 2

Peripherals Details
Serial port RJ45

Other Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes


Certification
CE/RED, EAC, ROHS

Included parts
2x IEC cords
Screw and feet kit (K10)
Rackmount bracket white
