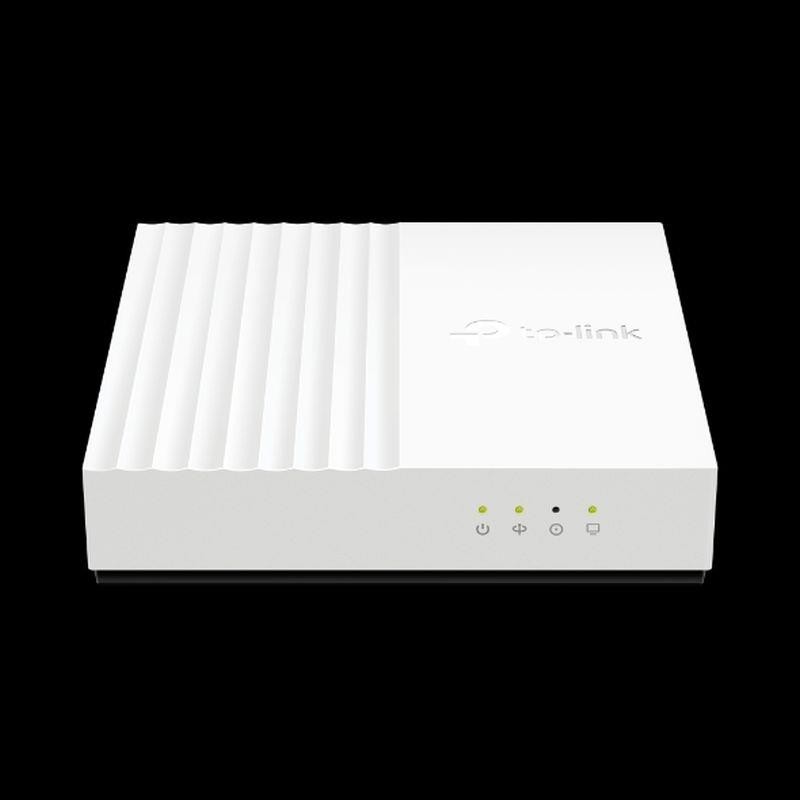

TP-LINK ROUTER FIBRA XGZ030

Conectividad: 1 SC/APC PON Port (XGS-PON) Class E1 + 1 puertos 10 Gigabit LAN Ethernet
Compatibilidad VLAN: 802.1Q TAG VLAN, VLAN Transparent/VLAN Translation/VLAN Trunk.
Autenticación: Basada en Serial Number o Password.
Gestión Remota: OMCI.
ITU-T G.9807.1, ITU-T G.988: Compatible con los estándares de la Industria. Compatibilidad con gestión OMCI. Compatible con OLTs de Terceros.
CARACTERÍSTICAS DE HARDWARE
Interfaz1 XGS-PON Port
1 10G RJ45 Port
Botones1 Power On/Off Button
1 Reset Button
Fuente de Alimentación Externa9V/0.85A
Estándares InalámbricosIEEE 802.1p, 802.1Q, 802.1X, 802.1D, 802.1w
IEEE 802.3, 802.3.u, 802.3ab, 802.3x
Tasa de TransferenciaDownstream Speeds: 10 Gbps*
Upstream Speeds: 10 Gbps*
Dimensiones4.72 × 4.72 × 1.1 in (120 × 120 × 27.85 mm)
Distancia0–20 Km Max
Estándares GPONITU-T G.9907.1, ITU-T G.988
Módulo ÓpticoClass E1
ReceptorSuper-TIA
TransmisorDFB laser
Longitud de OndaUpstream: 1270 nm
Downstream: 1577 nm
CARACTERÍSTICAS DE SOFTWARE
Características AvanzadasUpstream and Downstream FEC,
Dynamic Bandwidth Allocation (DBA) support NSR/SR,
Up to 32 T-CONTs and 256 GEM ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism
802.3az EEE energy conservation
Schedule Reboot,
LED Schedule
VLAN802.1Q tag VLAN, Q in Q VLAN
VLAN transparent mode/VLAN translation
mode/VLAN trunk mode
Authentication based on SN and password
SeguridadAES encryption
Packet filter based on VLAN
GestiónLocal management: WebGUI, Telnet
Remote management: OMCI
IGMPIGMP v1/v2/v3
OTROS
Contenido del PaqueteXGS-PON Terminal
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
RequisitosMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)
CertificacionesCE, FCC, RoHS
Factores AmbientalesOperating Temperature: 0?–40? (32?–104?)
Storage Temperature: -40?–60? (-40?–140?)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
