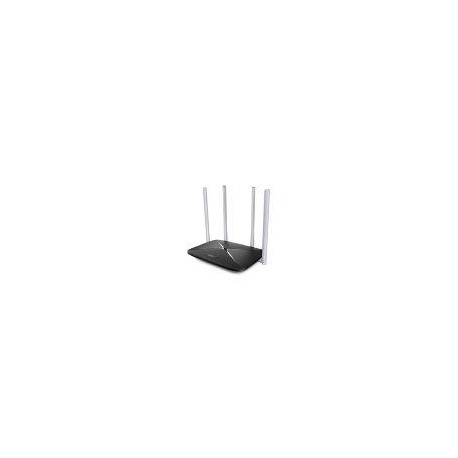

MERCUSYS ROUTER AC1200 DUAL BAND WIRELESS

AC1200 Dual Band Wireless Router
AC12
Supports 802.11ac standard - the next generation of Wi-Fi
Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
4 External Antennas Greatly Expand Wireless Coverage
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
Easy installation - intuitive webpage guides you through the setup process in minutes


Dimensions (W X D X H)222mm x 140mm x 32mm
External Power Supply9VDC/0.85A
Antenna Type4 x 5dBi omni directional antennas
Signal Rate
11ac: Up to 867Mbps (Dynamic)

11n: Up to 300Mbps (Dynamic)

11g: Up to 54Mbps (Dynamic)

11b: Up to 11Mbps (Dynamic)

ButtonReset button
Wireless StandardsIEEE 802.11ac?IEEE 802.11n?IEEE 802.11g?IEEE 802.11b?IEEE 802.3?IEEE 802.3u
Frequency2.390 ~ 2.4835GHz
5.150 ~ 5.825GHz
Reception Sensitivity
11b CCK 1 -96

11g OFDM 6 -93

11n HT20 MCS7 -73

11n HT40 MCS7 -70

11a OFDM 6 -92

11ac VHT20 MCS8 -68

11ac VHT40 MCS9 -64

11ac VHT80 MCS9 -60

Interfaces
4 10/100Mbps LAN ports

1 10/100Mbps WAN port

CertificationsCE, ROHS
Package Contents
AC1200 Dual Band Wireless Router

Power adapter

Quick installation guide

Ethernet cable

Environment
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)

Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Operating humidity: 10% ~ 90%, non-condensing

Storage humidity: 5% ~ 90%, non-condensing

Transmission Power<20dBm
Wireless SecurityWPA-PSK / WPA2-PSK
Wireless FunctionsWDS bridge
WAN TypeDynamic IP/Static IP/PPPoE
Management
Access control

Local management

Remote management

DHCPServer
Port ForwardingVirtual server, UPnP, DMZ
Dynamic DNSOray
Firewall SecurityIP and MAC address binding
ProtocolsIPv4
Guest Network2.4GHz guest network
