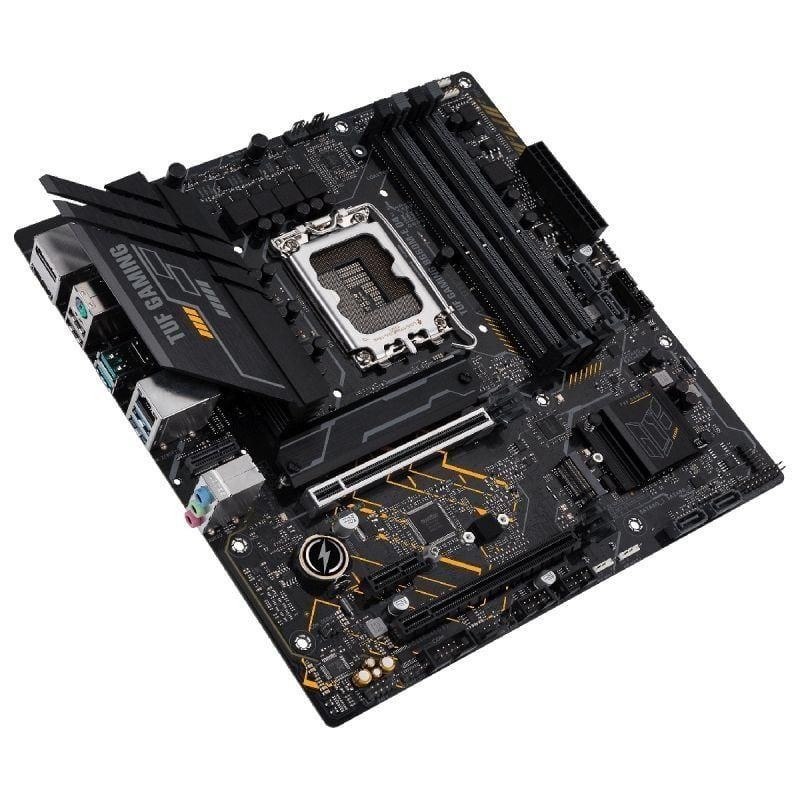

ASUS PLACA BASE TUF GAMING B660M-E D4 LGA1700 GEN 12.ª / 4xDDR4 / 2xM.2

ASUS TUF GAMING B660M-E D4: Placa base Intel® B660 LGA 1700 mATX con ranura PCIe 4.0, dos ranuras M.2 PCIe 4.0, 10 etapas de alimentación, Realtek 2.5Gb Ethernet, DP, HDMI, USB 3.2 Gen. 2 de tipo C® frontal, Aura Sync
Zócalo Intel® LGA 1700: Compatible con los procesadores Intel® de 12.ª Gen.
Solución de alimentación mejorada: 10 etapas de alimentación, PCB de seis capas, zócalo ProCool, componentes TUF de grado militar y VRM Digi+ para ofrecer la máxima durabilidad.
Refrigeración integral: Disipador VRM ampliado, disipador M.2 flexible, disipador PCH, conectores de ventilación híbridos y Fan Xpert 2+.
Conectividad de última generación: Ranura PCIe 4.0, ranuras M.2 PCIe 4.0, USB 3.2 Gen. 2 de tipo C® frontal.
Diseñada para gaming online: Realtek 2.5Gb Ethernet y TUF LANGuard.
Cancelación de ruido bidireccional con IA: Reduce el ruido de fondo del micrófono y la salida de audio para que te comuniques con claridad mientras juegas y participas en videoconferencias.

Model
TUF GAMING B660M-E D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel®
Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors*
Supports Intel® Turbo Boost Technology 2.0
and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support
list.
** Intel® Turbo Boost Max Technology 3.0
support depends on the CPU types.
Chipset
Intel® B660 Chipset
Memoria
4 x DIMM, Max. 128GB, DDR4 5333(OC)/
5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
MHz
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile
(XMP)
OptiMem II
*Actual memory data rate depends on the CPU
types and DRAM modules, for more information refer to www.asus.com for the
Memory QVL (Qualified Vendors Lists).
Gráficos
1 x DisplayPort**
1 x HDMI®port***
*Graphics specifications may vary between
CPU types. Please refer to www.intel.com for any updates.
**Support 4K@60Hz as specified in
DisplayPort 1.4.
***Support 4K@60Hz as specified in HDMI
2.1.
Ranuras de expansión
Intel®13th & 12th Gen Processors*
1 x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slot
* Supports Intel® Optane Memory H Series on
PCH-attached PCIE slot
Almacenamiento
Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*
Intel®13th &12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports
SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports
Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Realtek2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
V-M.2 slot only (Key E, CNVi &
PCIe)*
* Wi-Fi module is sold separately.
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (Type-A)
2 x USB 3.2 Gen1 ports (Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High
Definition Audio CODEC
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz
playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input
noise to ensure consistent performance
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the
front panel is required to support 7.1 Surround Sound audio output.
Puertos de E/S del panel posterior
2 x USB 3.2 Gen 2 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek2.5Gb Ethernet port
3 x Audio jacks
1 x V-M.2 slot (Key E)
1 x PS/2 Keyboard/Mouse combo port
Conectores de E/S internos
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB
Type-C®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4
USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x S/PDIF Out header
Características especiales
ASUS TUF PROTECTION
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
- ProCool
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Funciones de software
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
Norton Anti-virus software (Free Trial
version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manejabilidad
WOL by PME, PXE
Accesorios
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
Sistema operativo
Windows® 11 64-bit, Windows® 10 64-bit,
Factor de forma
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
