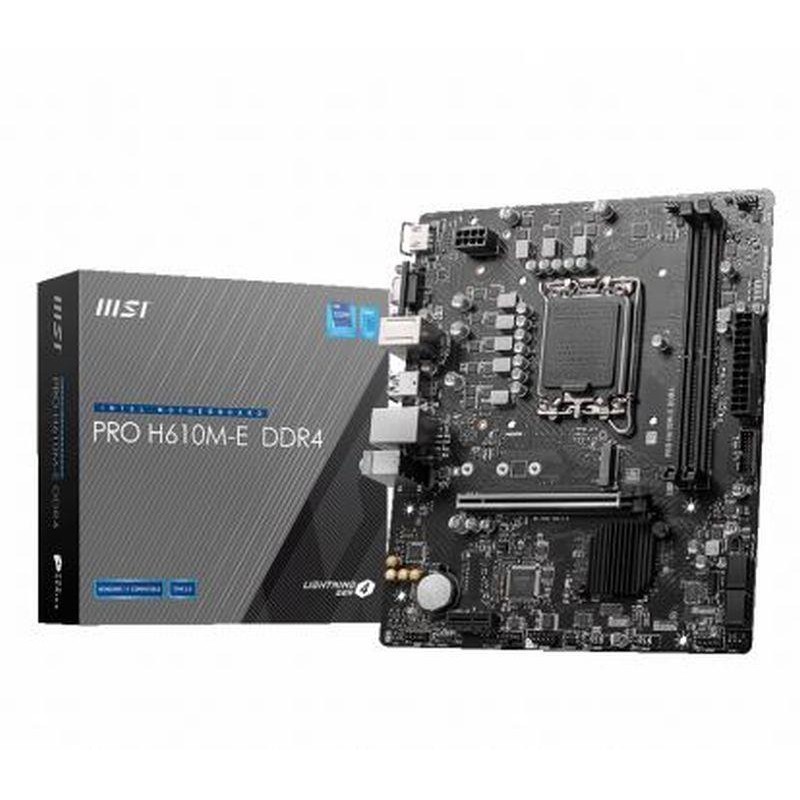

MSI PLACA BASE PRO H610M-E D4 DDR4 LGA1700 14th/ 13th/ 12th Gen / 2xDDR4 / 1xM.2/1x HDMI/1x VGA/MATX

Processor
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
Processor socket LGA1700
Please go to www.msi.com to get the newest support status as new processors are released.
See supported processors

Chipset
Intel® H610 Chipset
Memory
2x DDR4 memory slots, support up to 64GB 1
Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Please refer to www.msi.com for more information on compatible memory.
See supported memory

Expansion Slot
1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1
Onboard Graphics
1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.
SATA Ports
4x SATA 6Gb/s ports (From H610 chipset)
M.2 SSD Slot
1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Audio
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
LAN
1x Realtek® RTL8111H 1Gbps LAN controller
Power Connectors
1x 24-pin ATX main power connector
1x 8-pin +12V power connector
Internal USB Connectors
1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports
Fan Connectors
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
System Connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Serial port connector
Jumpers
1x Clear CMOS jumper
LED Features
1x 4-pin RGB LED connector
4x EZ Debug LED
Back panel ports
HDMI™
VGA
Keyboard / Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
MSI PRO H610M-B DDR4 back panel ports
Dimensions
M-ATX Form Factor
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Box content
