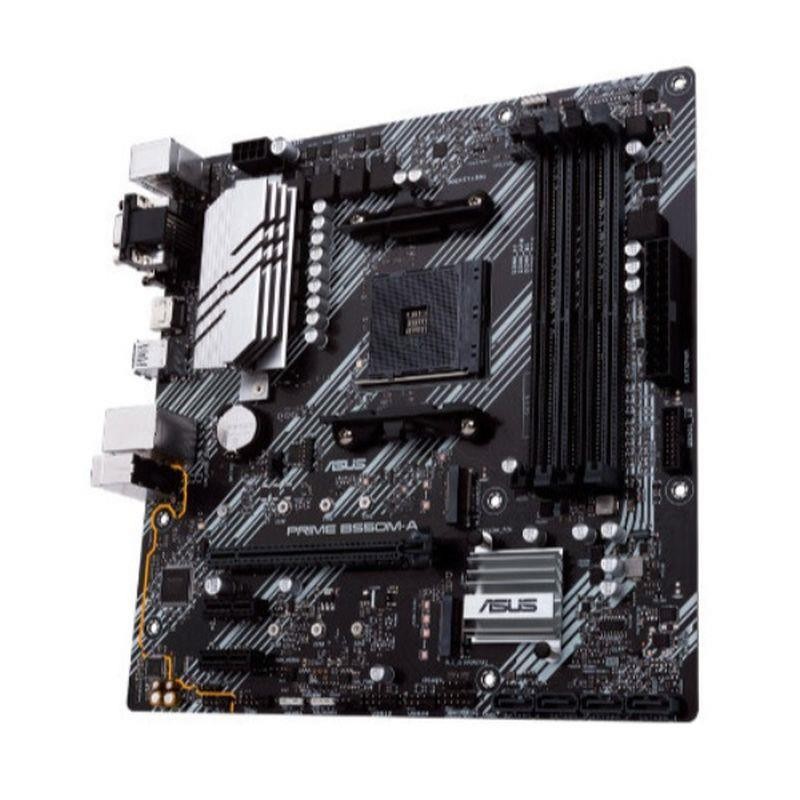

ASUS PLACA BASE PRIME PRIME B550M-A/CSM SOCKET AM4 4DDR4-3200MHz HDMI DVI VGA 1Xpcie 4.0 3PCIE 3.0 3xM.2 GLAN 8USB3.2

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

• 4 x DIMM, Max. 128GB, DDR4

• 1 x PCIe 4.0 x16 (x16 mode), 1 x PCIe 3.0 x16 (x16 mode), 2 x PCIe 3.0 x1

• 1 x D-Sub, 1 x DVI-D, 1 x HDMI 2.1

• 3 x M.2 , 4x SATA 6Gb/s port(s),

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

• Realtek RTL8111H 1Gb Ethernet
Procesador

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors

Chipset

• AMD B550

Memoria

• 4 x DIMM, Max. 128GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

• Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU.

Slots

• 1 x PCIe 4.0 x16 (x16 mode)

• 1 x PCIe 3.0 x16 (x16 mode)

• 2 x PCIe 3.0 x1

Gráficos

• 1 x D-Sub

• 1 x DVI-D

• 1 x HDMI 2.1

Almacenamiento

• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

• 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

• 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

• 4 x SATA 6Gb/s port(s),

USB

• 2 x USB 3.2 Gen 2 port(s)(2 x Type-A)

• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

• 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

• 4 x USB 2.0 port(s)(4 x Type-A)

Audio

• Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

• Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

• LED-illuminated design - Audio Shielding

• Dedicated audio PCB layers

• Premium Japanese audio capacitors

Conectividad y redes

• Realtek RTL8111H 1Gb Ethernet

Conectores Internos

• 1 x CPU Fan connector(s)

• 1 x CPU OPT Fan connector(s)

• 2 x Chassis Fan connector(s)

• 2 x Aura RGB Strip Headers

• 1 x Addressable Gen 2 header(s)

• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

• 1 x SPI TPM header 4 x SATA 6Gb/s connector(s)

• 1 x S/PDIF out header(s)

• 1 x 24-pin EATX Power connector(s)

• 1 x 8-pin EATX 12V Power connectors

• 1 x Front panel audio connector(s) (AAFP)

• 1 x Clear CMOS jumper(s)

• 1 x System panel connector

• 1 x COM port header 1 x Speaker connector

Conectores Traseros

• 1 x PS/2 keyboard/mouse combo port(s)

• 1 x DVI-D

• 1 x D-Sub

• 1 x HDMI

• 1 x LAN (RJ45) port(s)

• 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)

• 4 x USB 3.2 Gen 1 (blue) Type-A

• 3 x Audio jack(s)

Factor de forma

• mATX ( 24.4 cm x 24.4 cm
