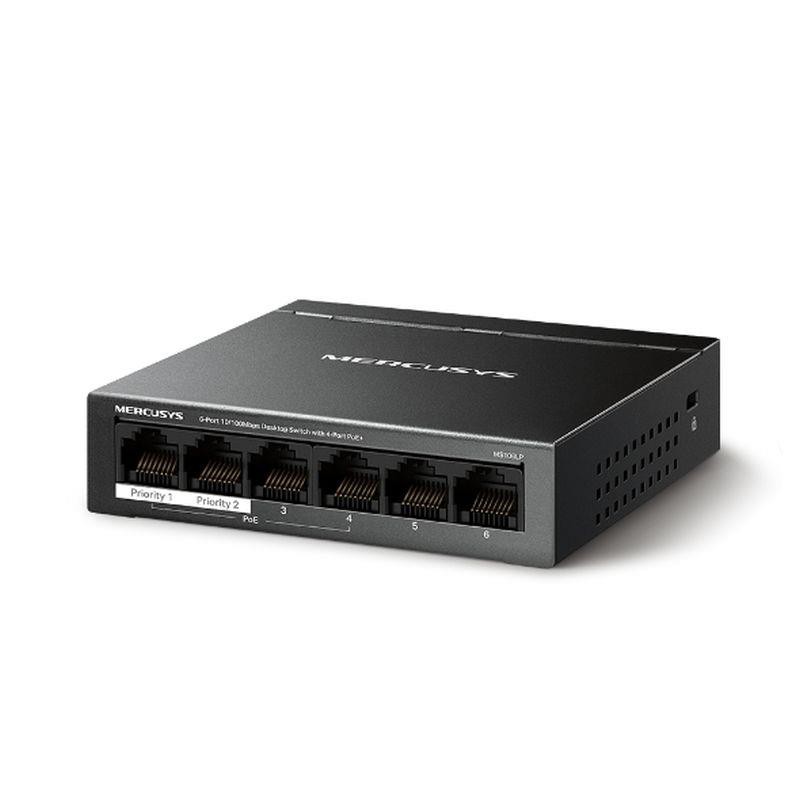

MERCUSYS SWITCH 6-PORT 10/100MBPS DESKTOP 4-PORT POE+

6 Ports: 6× 10/100 Mbps RJ45 ports with 4 PoE+ ports
Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
High Power PoE+: Support PoE Power up to 30 W for each PoE port and 40 W for all PoE ports*
2× Uplink Ports: MS106LP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life
Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

HardwareDimensions
99.8*98*25mm

PoE Ports
RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 40 W

Interfaces
6× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply
External Power Adapter (Output: 53.5V/0.81A)

Installation
Desktop

Wall Mount

Standards and Protocols
IEEE 802.3x Flow Control

Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame
2 KB

Mac Address Table
2K

Max Power Consumption
1.87W(220 V / 50 Hz, no PD connected)

44.8W(220 V / 50 Hz, with 40W PD connected)

Max Heat Dissipation
6.34 BTH/h (no PD connected)

152.32 BTH/h(with 40W PD connected)

OthersPackage Contents
• 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ (MS106LP)
• Power Adapter
• Quick Installation Guide

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
