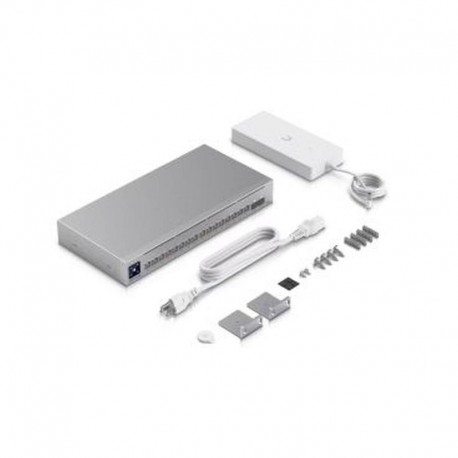

UBIQUITI SWITCH USW-PRO-MAX-16-POE

Ubiquiti USW-PRO-MAX-16-POE
Un conmutador Etherlighting* de capa 3 y 16 puertos con 2,5 GbE, salida PoE++ y opciones de montaje versátiles.

(4) puertos PoE++ de 2,5 GbE
(12) puertos PoE+ GbE
(2) puertos SFP+ de 10 G

Disponibilidad PoE total de 180 W
Montaje versátil en sobremesa, pared y bastidor (requiere accesorio opcional UACC-PRO-MAX-16-RM).
Sistema de refrigeración silencioso y sin ventilador


*Puertos Etherlighting™ que se iluminan para indicar la ubicación del puerto, la velocidad/enlace y la VLAN/red nativa. Requiere cables de conexión UniFi Etherlighting

Mechanical
Dimensions325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7)
Weight2.1 kg (4.6 lb)
Enclosure materialSGCC steel
Hardware
Management interfaceEthernet In-Band
Networking interface(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface(12) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput42 Gbps
Switching capacity84 Gbps
Forwarding rate62.496 Mpps
Power methodDC adapter
Power supply54V, 210W
Max. power consumption30W (Excluding PoE output)
Total available PoE180W
Max. PoE wattage per port by PSEPoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE modePoE: 44—57V
PoE+/PoE++: 50—57V
LCM display(1) 1.3 touchscreen
ButtonFactory reset
Ambient operating temperature-5 to 40° C (23 to 104° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
Switching Features
Layer 2 featuresIGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 featuresDHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
EthernetLocating
Speed/link
Native VLAN/network
SFP+Locating
Speed/link
Native VLAN/network
Application Requirements
UniFi NetworkVersion 8.1.127 and later
