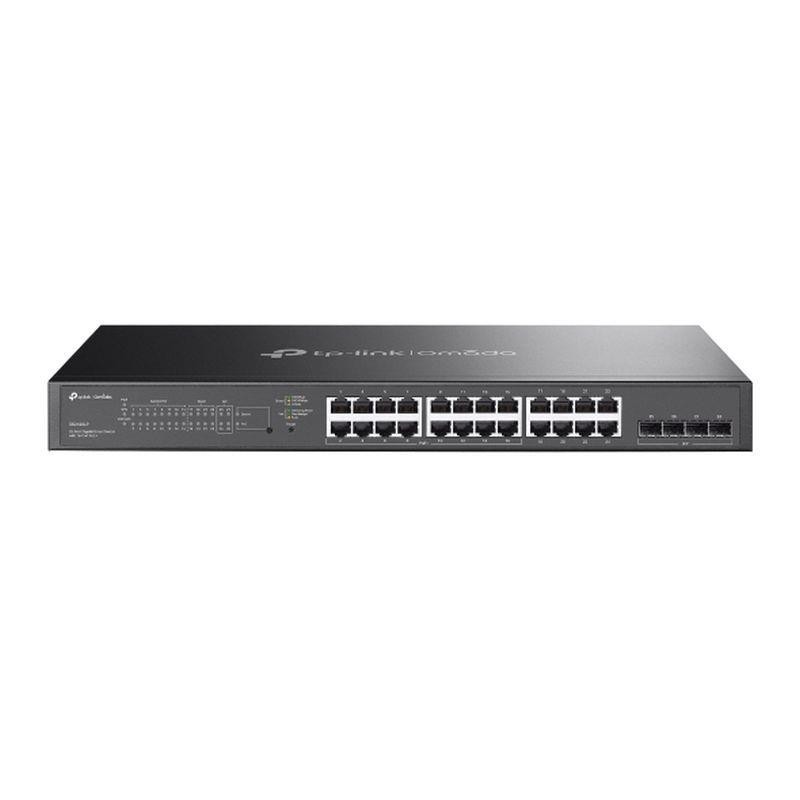

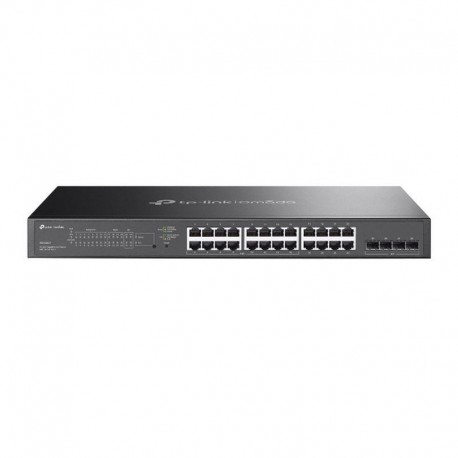

TP-LINK SWITCH OMADA SG2428LP DE 28 PUERTOS CON 16 PUERTOS POE+

Switch Omada Smart de 28 puertos Gigabit, con 16 puertos PoE+
16x puertos PoE+ a Gigabit compatibles con 802.3af/at
8x puertos no-PoE a Gigabit y 4× puertos SFP
Budget PoE total de 150W, hasta 30W de salida PoE por puerto*
Gestión centralizada en la nube a través de la web o de la aplicación Omada†
Admite gestión local via web, CLI, SNMP, y RMON
Enrutamiento estático ayuda en el enrutamiento interno del tráfico para una mayor eficiencia
VLAN, ACL, QoS, y IGMP Snooping
Carcasa metálica duradera y diseño para montaje en rack
CARACTERÍSTICAS DE HARDWARE
Interfaz• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Cantidad de VentiladoresFanless
Bloqueo de Seguridad Físicov
Fuente de Alimentación100-240V AC, 50/60Hz
Puertos PoE (RJ45)• Standard: 802.3at/af compliant
• PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
• PoE Power Budget: 150 W*
Dimensiones17.3×8.7×1.73 in (440×220×44 mm)
MontajeRack Mountable
Consumo de Potencia Máximo184.7 W (110V/60Hz) (with 150 W PD connected)
Disipación máxima de calor628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)
RENDIMIENTO
Capacidad de Conmutación56 Gbps
Tasa de Reenvío de Paquetes41.66 Mpps
Tabla de Direcciones MAC8K
Memoria del Buffer de Paquete4.1 Mbit
Jumbo Frame9 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+• 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Multicast L2• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Características Avanzadas• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
VLAN• VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Lista de Control de Acceso• Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
Seguridad• IP-MAC-Port Binding
• AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Radius authentication and accountability support
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
GESTIÓN
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nubeYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contactoYes. Requiring the use of Omada Cloud-Based Controller
Funciones de gestión• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
Otros
CertificacionesCE, FCC
Contenido del Paquete• SG2428LP
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Requisitos del sistemaMicrosoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Factores Ambientales• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
