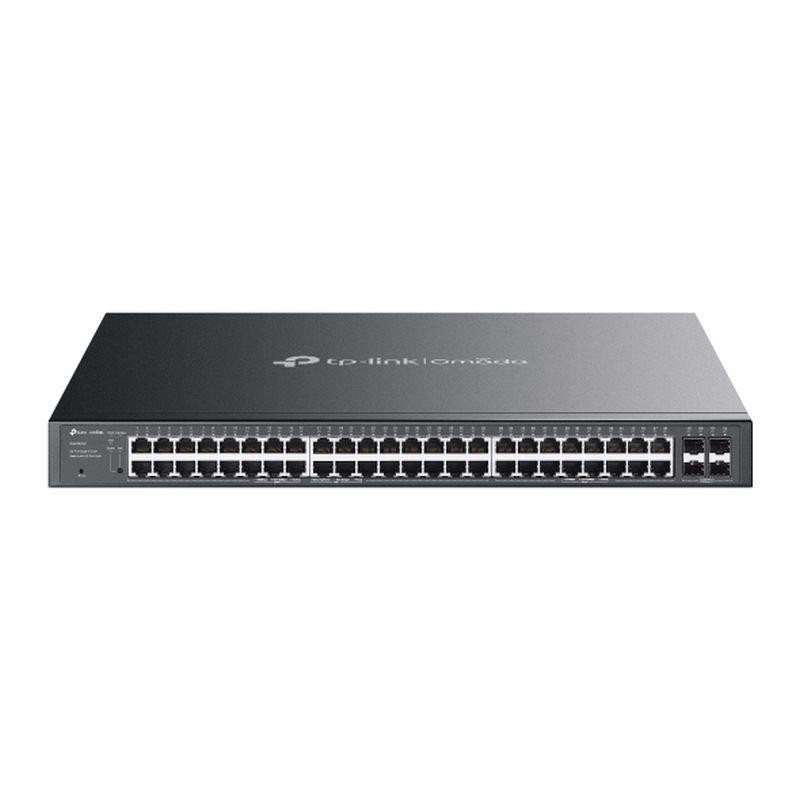

TP-LINK SWITCH OMADA SG2452LP DE 52 PUERTOS CON 32 PUERTOS POE+

Switch Omada Smart de 52 puertos Gigabit, con 32 puertos PoE+
32× puertos PoE+ a Gigabit compatibles con 802.3af/at
16× puertos no PoE y 4× puertos Gigabit SFP
Budget PoE total de 230W, hasta 30W de salida PoE por puerto*
Gestión centralizada en la nube a través de la web o de la aplicación Omada†
Admite gestión local via web, CLI, SNMP, y RMON
Enrutamiento estático ayuda en el enrutamiento interno del tráfico para una mayor eficiencia
VLAN, ACL, QoS, y IGMP Snooping
Diseño sin ventilador para un funcionamiento silencioso
Carcasa metálica duradera y diseño para montaje en rack
CARACTERÍSTICAS DE HARDWARE
Interfaz• 32× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 16× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Cantidad de VentiladoresFanless
Bloqueo de Seguridad Físicov
Fuente de Alimentación100-240 V AC~50/60 Hz
Puertos PoE (RJ45)• Standard: 802.3at/af compliant
• PoE+ Ports: 32 Ports (up to 30 W PoE Output per Port)
• PoE Power Budget: 230 W*
Dimensiones17.3×13.0×1.7 in (440×330×44 mm)
MontajeRack Mountable
Consumo de Potencia Máximo304.5W (110 V/60 Hz) (with 230 W PD connected)
Disipación máxima de calor1035.4 BTU/hr (110 V/60 Hz) (with 230 W PD connected)
RENDIMIENTO
Capacidad de Conmutación104 Gbps
Tasa de Reenvío de Paquetes77.37 Mpps
Tabla de Direcciones MAC16 K
Memoria del Buffer de Paquete12 Mbit
Jumbo Frame9 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control: Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+• 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Multicast L2• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• Limited IP Multicast (256 profiles and 16 entries per profile)
Características Avanzadas• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Intelligent Network Monitoring†
• Abnormal Event Warnings†
• Unified Configuration†
• Reboot Schedule†
VLAN• VLAN Group: Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Lista de Control de Acceso• Support up to 230 entries
• Time-based ACL
• MAC ACL
• IP ACL
• IPv6 ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
Seguridad• IP-MAC-Port Binding
• AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Radius authentication and accountability support
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control
IPv6• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
GESTIÓN
Omada AppYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nubeYes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contactoYes. Requiring the use of Omada Cloud-Based Controller.
Funciones de gestión• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
Otros
CertificacionesCE, FCC, RoHS
Contenido del Paquete• SG2452LP
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
Requisitos del sistemaMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Factores Ambientales• Operating Temperature: 0–40 ? (32–104 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
