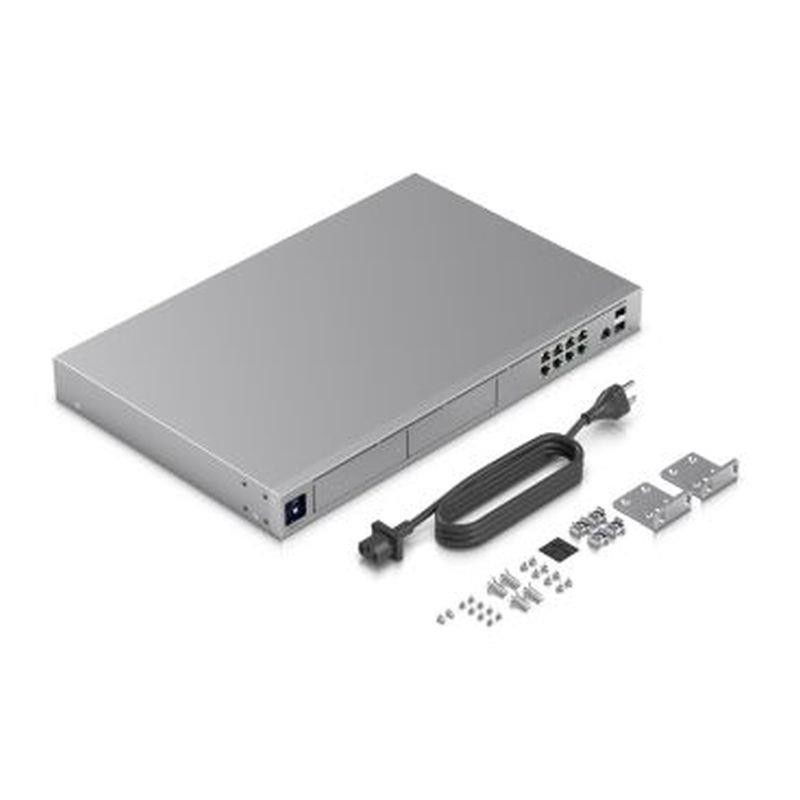

UBIQUITI SWITCH UDM-PRO-MAX GATEWAY CLOUD RACK-MOUNT

Ubiquiti UDM-PRO-MAX, Dream Machine Pro Max
Gateway cloud rack-mount con rendimiento de 10 Gbps. Balanceo de carga multi-WAN. 1x10GE SFP+, 8xGbE RJ45 LAN, 1x10GE SFP+, 1x2,5GbE RJ45 WAN, 2x 3,5 inches NVR DD. 128GB SSD

Cloud Gateway profesional para montaje en bastidor con rendimiento de 10 Gbps, equilibrio de carga multi-WAN y dos bahías para unidades NVR, diseñadas para sitios UniFi multiaplicación a gran escala.

Potencia de cálculo y memoria mejoradas para duplicar la capacidad de dispositivos y clientes UniFi de Dream Machine Pro/SE

Incluye la suite completa de aplicaciones UniFi para la gestión de dispositivos



-Enrutamiento a 5 Gbps con IDS/IPS
-(1) 10G SFP+*, (8) puertos LAN GbE RJ45
-(1) 10G SFP+*, (1) 2,5 GbE RJ45 puertos WAN
-(2) bahías de disco duro NVR de 3,5» con protección de datos RAID
-SSD de 128 GB integrada para grabaciones de detección de NVR
-Pantalla táctil de 1,3

Mechanical
Dimensions442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2)
Weight4.7 kg (10.4 lb)
Enclosure materialAluminium CNC, SGCC steel
Mount materialSGCC steel
Hardware
ProcessorQuad-core ARM® Cortex®-A57 at 2.0 GHz
System memory8 GB DDR4
On-board storage32 GB eMMC
Integrated 128 GB SSD
Management interfaceEthernet
Bluetooth
Networking interfaceLAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port

WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
IDS/IPS throughput5 Gbps*
*Measured with iPerf3.
Power method(1) Universal AC input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP-RPS DC input,12V DC, 4.6A
Power supplyAC/DC, internal, 100W
Supported voltage range100—240V AC
Max. power consumption60W
ESD/EMP protectionAir: ± 15kV, contact: ± 8kV
LCM display(1) 1.3 touchscreen
ButtonFactory reset
Ambient operating temperature-10° to 40° C (14° to 104° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Gateway Features
PerformanceRedundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation securityApplication-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networkingLicense-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
EthernetGreen: link/activity
SFP+Green: link/activity
HDDWhite: disk activity
Amber: disk error
RPSBlue: ready
