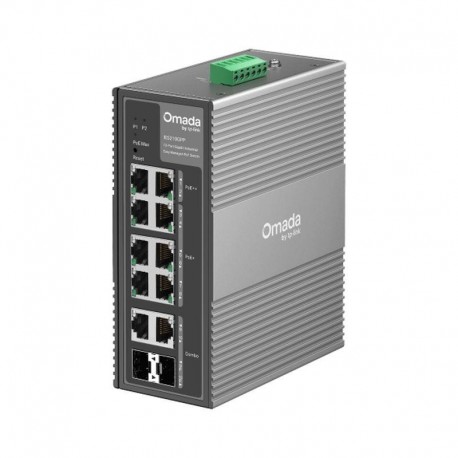

TP-LINK SWITCH OMADA IES210GPP 6 POE+ Y 2 POE++

Switch Industrial Omada Easy Managed con 6 puertos PoE+ y 2 puertos PoE++
8× Puertos Gigabit RJ45 (2× PoE++, 6× PoE+)
2× Puertos RJ45/SFP Gigabit Combo
240W Potencia PoE Total* con hasta 60W para cada puerto PoE++
Diseño industrial: Temperatura Funcionamiento -40~75°C, 6kV Protección contra rayos y entrada de alimentación redundante 1+1
Gran cantidad de Funcionalidades: Hasta 250m de distancia PoE,** VLAN, QoS, y STP/RSTP
Gestión Centralizada a través de interfaz web o de Omada App†
Carcasa de aluminio resistente IP40 con montaje en rail DIN / Diseño de montaje en pared
CARACTERÍSTICAS DE HARDWARE
Interfaz• 2× 10/100/1000 Mbps PoE++ RJ45 Ports
• 6× 10/100/1000 Mbps PoE+ RJ45 Ports
• 2× Gigabit SFP/RJ45 Combo Slots
• Auto-Negotiation/Auto MDI/MDIX
Cantidad de VentiladoresFanless
Instalación• DIN-rail mounting
• Wall mounting
Bloqueo de Seguridad Físicov
Fuente de Alimentación12-57V 1+1 Redundant DC Power Input
Puertos PoE (RJ45)• Standard: 802.3af/at/bt compliant
• PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port
• PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port
• PoE Budget:
- 60W (Input: 12V / 7.2A - 21V / 3.7A))
- 120W (Input: 21V / 6.7A - 46V / 3.1A)
- 240W (Input: 46V / 5.7A - 57V / 4.4A)
Dimensiones6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection• ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports
RENDIMIENTO
Capacidad de Conmutación20 Gbps
Tasa de Reenvío de Paquetes14.88 Mpps
Tabla de Direcciones MAC8K
Memoria del Buffer de Paquete4 Mbit
Jumbo Frame15 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio• 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
Características L2• Link Aggregation
- Static Link Aggregation
- Up to 4 aggregation groups and up to 6 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w)
Multicast L2• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Método de TransmisiónStore-And-Forward
GESTIÓN
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nubeYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contactoYes. Requires the use of Omada Cloud-Based Controller
Funciones de gestión• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
Otros
CertificacionesFCC, CE, RoHS
Contenido del Paquete• IES210GPP
• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide
Factores Ambientales• Operating Temperature: -40?~75? (-40?~167?)
• Storage Temperature: -40?~85? (-40?~185?)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing
