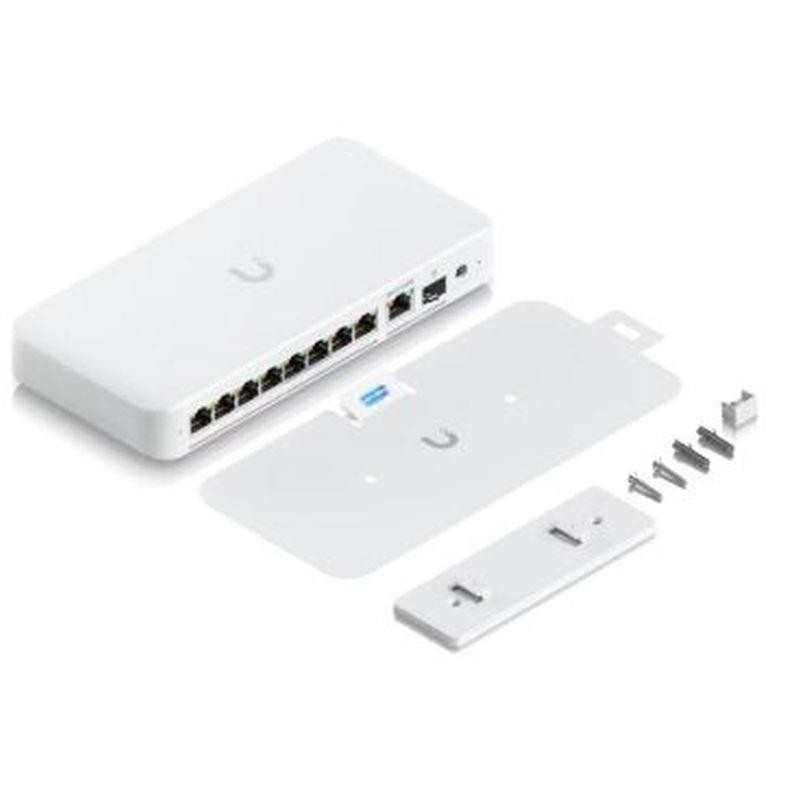

UBIQUITI SWITCH USW-FLEX-2.5G-8-POE SALIDA POE++ RJ45 SFP+ 10

Ubiquiti USW-FLEX-2.5G-8-POE Switch multigigabit con 8x 2,5 GbE con salida PoE++ y 1x RJ45/SFP+ 10 GbE PoE IN (PoE+++) o adaptador alimentación CA incluido (hasta 196W con fuente CA)
[USW-FLEX-2.5G-8-POE]
Añadir a la Cesta

USW-FLEX-2.5G-8-POE

Switch PoE++ 8x 2,5 GbE con salida PoE++ y puerto enlace ascendente combinado RJ45/SFP+ 10 GbE puede alimentarse con PoE+++ (no incluido) o adaptador alimentación CA (no incluido). PoE budget 12W con PoE hasta 196 con fuente CA

Nota: no incluye sistema de alimentación, puede optar por PoE++ (como inyector U-POE++) o adaptador UACC-Adapter-AC-210W

(8) puertos de salida PoE++ de 2,5 GbE
(1) Puerto de entrada PoE+++ de 10 GbE para alimentación / combinación de puertos SFP
- Disponibilidad PoE de 57 W con entrada PoE++
- 37 W de disponibilidad PoE con entrada PoE
- 12 W de disponibilidad PoE con entrada PoE

Disponibilidad PoE de 196 W con adaptador de alimentación de CA opcional (no incluido).

Accesorios opcionales:

UACC-Adapter-AC-210W
U-PoE++ PoE++ Adapter (60W)
UACC-OM-MM-10G-D 10G Multi-Mode Optical Module
UACC-DAC-SFP10-0.5M 10G Direct Attach Cable
UACC-Switch-DIN DIN Rail Mount
UACC-Switch-FM Floating Mount

Mechanical
Dimensions212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3)
Weight567 g (20 oz)
Enclosure materialPolycarbonate
MountingWall-mountable (kit included)
DIN rail-mountable (sold separately)
Hardware
Management interfaceEthernet In-Band
Networking interface(8) 2.5/1 GbE RJ45 ports
(1) 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port*
While only one is active, RJ45 can receive power and SFP+ can be utilized for data.
PoE interface(8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput30 Gbps
Switching capacity60 Gbps
Forwarding rate44.64 Mpps
Power method(1) AC power adapter, 54V DC, 3.9A (Not included)
(1) PoE+++ (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)
Power supplyExternal AC/DC adapter
UniFi PoE switch
Supported voltage rangeAC/DC input: 54V DC (DC jack)
PoE input: 50—57V DC
Max. power consumptionPoE input: 14W (Excluding PoE output)
AC input: 17W (Excluding PoE output)
Total available PoEPoE+++ input: 57W
PoE++ input: 37W
PoE+ input: 12W
210W AC adapter input: 196W
Max. PoE wattage per port by PSEPoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE modePoE: 44—57V
PoE+/PoE++: 50—57V
ButtonFactory reset
Ambient operating temperature-20 to 45° C (-4 to 113° F)
Ambient operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
Switching Features
Layer 2 featuresSTP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring
LEDs
SystemBlue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted
EthernetLink/activity
PoE input/output
SFP+Link/activity
Application Requirements
UniFi NetworkVersion 9.0.108 and later
