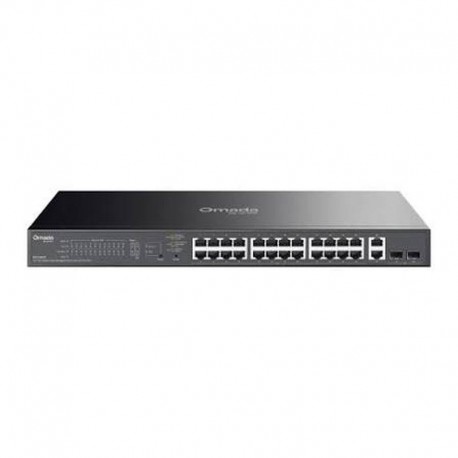

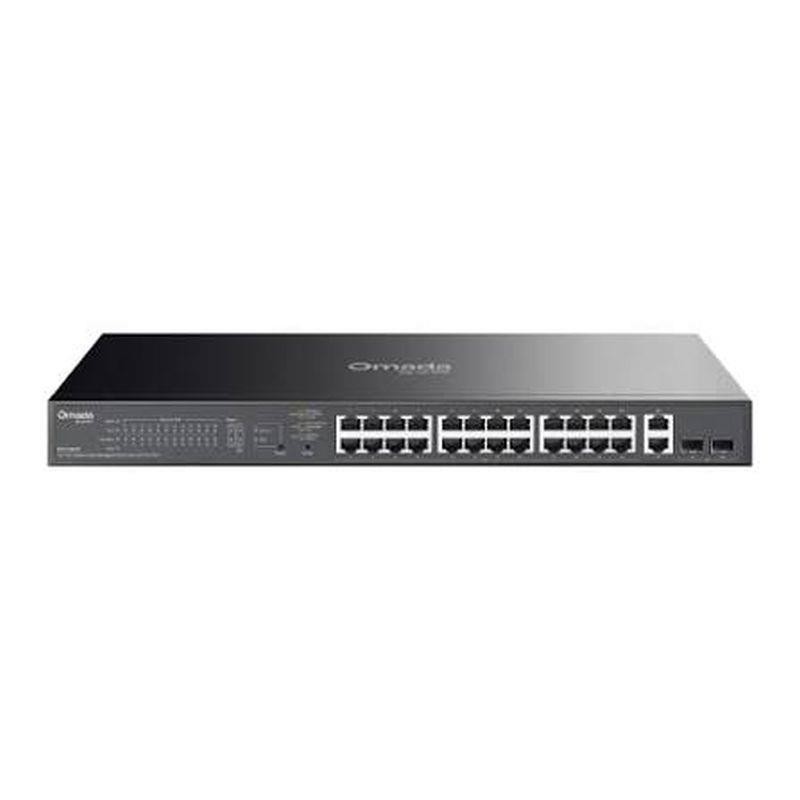

TP-LINK SWITCH OMADA ES228GP DE 28 PUERTOS CON 24 PUERTOS POE+

CARACTERÍSTICAS DE HARDWARE
Interfaz• 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× Gigabit SFP Slots
• Auto-Negotiation/Auto MDI/MDIX
Cantidad de Ventiladores2
InstalaciónRackmount
Bloqueo de Seguridad Físicov
Fuente de Alimentación100–240V AC, 50/60Hz 4.0A
Puertos PoE (RJ45)• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensiones17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Surge Protection±6kV
RENDIMIENTO
Capacidad de Conmutación56 Gbps
Tasa de Reenvío de Paquetes41.67 Mpps
Tabla de Direcciones MAC8K
Memoria del Buffer de Paquete4 Mbit
Jumbo Frame15 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio• Port-based/802.1p/DSCP QoS?
• 8 Priority Queues
• Priority Schedule Mode?
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
Características L2• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
Multicast L2• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Método de TransmisiónStore-And-Forward
GESTIÓN
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Gestión Centralizada• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Acceso a la nubeYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Aprovisionamiento sin contactoYes. Requires the use of Omada Cloud-Based Controller
Funciones de gestión• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
Otros
CertificacionesFCC, CE, RoHS
Contenido del Paquete• ES228GP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
Factores Ambientales• Operating Temperature:-5?~50? (23?~122?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
