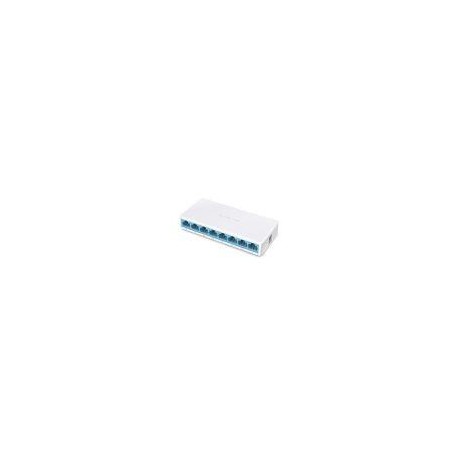

MERCUSYS SWITCH 8-PORT 10/100MBPS DESKTOP

8-Port 10/100Mbps Desktop Switch
MS108
Eight 10/100Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
Easily wired network expansion
Compact design for flexible arrangement
Plug and play setup, no configuration required


Environment
Operating temperature: 0°C~40°C (32°F~104°F)

Storage temperature: -40°C~70°C (-40°F~158°F)

Operating humidity: 10% ~ 90% non-condensing

Storage humidity: 5%~90% non-condensing

Dimensions (W X D X H)127 x 60.3 x 22 mm
External Power SupplyExternal power adapter
(Output: 5.0VDC / 0.6A)
Interfaces8 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

CSMA/CD
Fan QuantityFanless
Data Rates
10/100Mbps at half duplex

20/200Mbps at full duplex
Buffer Capacity768Kb
Jumbo Frame2KB
Switching Capacity1.6Gbps
LEDEthernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Transfer MethodStore and forward
CertificationsCE, RoHS
Package Contents
8-Port 10/100Mbps Desktop Switch

MS108

Power adapter

Quick installation guide
