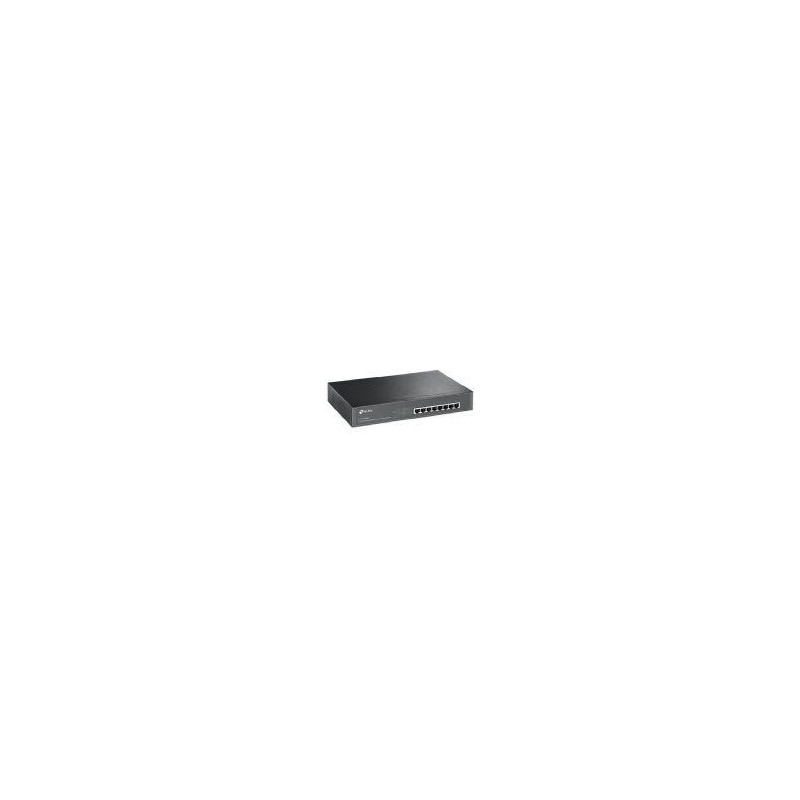

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
TL-SG1008MP
8 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
Innovative energy-efficient technology reduces power consumption
Rack mountable with included rack mount bracket
Total PoE power budget up to 126W
Plug and play design, no configuration required
HARDWARE FEATURES
Interface8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity1
Physical Security LockNo
Power Supply100-240VAC, 50/60Hz
PoE+ Ports(RJ45)Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth16Gbps
Mac Address Table4K
Buffer Size1.5Mbits
Dimensions ( W x D x H )11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting13 and 19 1U rack mountable
Max Power Consumption9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced FeaturesCompatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer MethodStore-And-Forward
OTHERS
CertificationFCC, RoHS
Package ContentsTL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
EnvironmentOperating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing.
