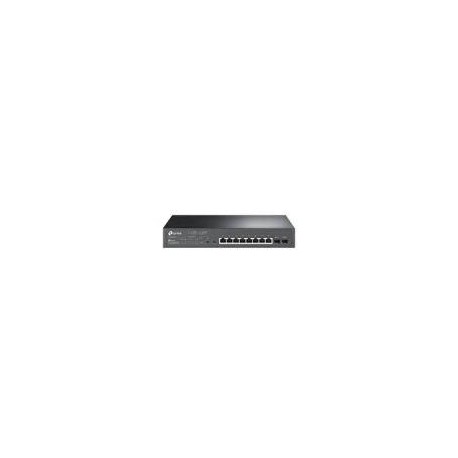

TP-LINK SWITCH SEMIGESTIONABLE 8 PUERTOS GIGABIT 4 PUERTOS POE+

TL-SG2008P Nuevo
Switch Smart Gigabit JetStream de 8 puertos con 4 puertos PoE+
Presupuesto PoE de 62 W: 4 puertos PoE + compatibles con 802.3at / af con un suministro total de 62 W *.
Puertos Gigabit: los puertos 4 × gigabit PoE + y los puertos 4 × gigabit no PoE proporcionan conexiones de alta velocidad.
Integrado en Omada SDN: Zero-Touch Provisioning (ZTP) **, Administración centralizada de la nube y Monitoreo inteligente.
Administración centralizada: acceso a la nube y aplicación Omada para una comodidad y administración fáciles.
Estrategias de seguridad sólidas: enlace de puertos IP-MAC, ACL, seguridad de puertos, defensa DoS, control de tormentas, DHCP Snooping, 802.1X, autenticación de radio y más.
Optimización las aplicaciones de voz y video: L2 / L3 / L4 QoS e IGMP snooping.

CARACTERÍSTICAS DE HARDWARE
Estándares y ProtocolosIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaz• 8 puertos RJ45 10/100/1000 Mbps (los puertos 1–4 admiten 802.3at / af PoE +)
• Negociación automática / Auto MDI / MDIX
Medios de Red• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Cantidad de VentiladoresSin ventiladores
Fuente de Alimentación• Adaptador de corriente externo (Salida: 53.5 VDC / 1.31 A)
Consumo de Potencia• 7.9 W (220 V/50 Hz) (no PD connected)
• 79.2 W (220 V/50 Hz) (with 62 W PD connected)
Puertos PoE (RJ45)• Estándar: compatible con 802.3af / at
• Puertos PoE: 4 puertos
• Suministro PoE total: 62 W *
Dimensiones209 x 126 x 26mm (8.2 x 4.9 x 1.0 in)
RENDIMIENTO
Ancho de Banda / Backplane16 Gbps
Tabla de Direcciones MAC8k
Memoria del Buffer de Paquete4.1 Mbit
Jumbo Frame9 KB
CARACTERÍSTICAS DE SOFTWARE
Calidad de Servicio• 802.1p CoS/ DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow based Rating Limit
• Smoother Performance
• Actions for flows
- Mirror(to supported interface)
- Redirect(to supported interface)
- Rate Limit
- QoS Remark
• Storm Control
- Multiple Control Modes(kbps/ratio/pps)
- Broadcast/Multicast/Unknown-Unicast Control
Características L2 y L2+• DHCP Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Multicast L2• 512 IPv4,IPv6 shared multicast groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
- Static Group Config
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
• Multicast VLAN Registration
• Multicast Filtering
IPv6 Support• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery(MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet(v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN• VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
Lista de Control de Acceso• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
Seguridad• AAA
• 802.1X
- Port based authentication
- MAC(Host) based authentication
- Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP
- MAB
- Guest VLAN
- Support Radius authentication and accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Gurad
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Gurad
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS1.0
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
Características de Conmutación L2• Link Aggregation
- static link aggregation
- Up to 8 aggregation groups and up to 8 ports per group
- 802.3ad LACP
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: Loop back detection, TC Protect, BPDU Filter/Protect, Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- CPU Mirroring
• Device Link Detect Protocol(DLDP)
Gestión• Web-based GUI and CLI management
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• System Log
• 802.1ab LLDP/ LLDP-MED
MIBs• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
GESTIÓN
Omada AppSi
Centralized Management• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud AccessSí (a través de OC300, OC200, Omada Cloud-Based Controller o Omada Software Controller)
Management Features• Gestión GUI basada en web y CLI
• SNMPv1 / v2c / v3
• Captura / informe SNMP
• RMON (grupos 1,2,3,9)
• Plantilla SDM
• Cliente DHCP / BOOTP
• Imagen dual, configuración dual
• Monitoreo de la CPU
• Diagnóstico de cable
• EEE
• Registro del sistema
• 802.1ab LLDP / LLDP-MED
OTROS
CertificacionesCE, FCC, RoHS
Contenido del Paquete• TL-SG2008P
• Power Adapter
• Installation Guide
• Rubber Feet
Requisitos del sistemaMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ o Windows 7/8/10, MAC® OS, NetWare®, UNIX® o Linux.
Factores AmbientalesTemperatura de Funcionamiento: 0?~40? (32?~104?)
Temperatura de Almacenamiento: -40?~70? (-40?~158?)
Humedad de Funcionamiento: 10%~90% sin condensación
Humedad de Almacenamiento: 5%~90% sin condensación
