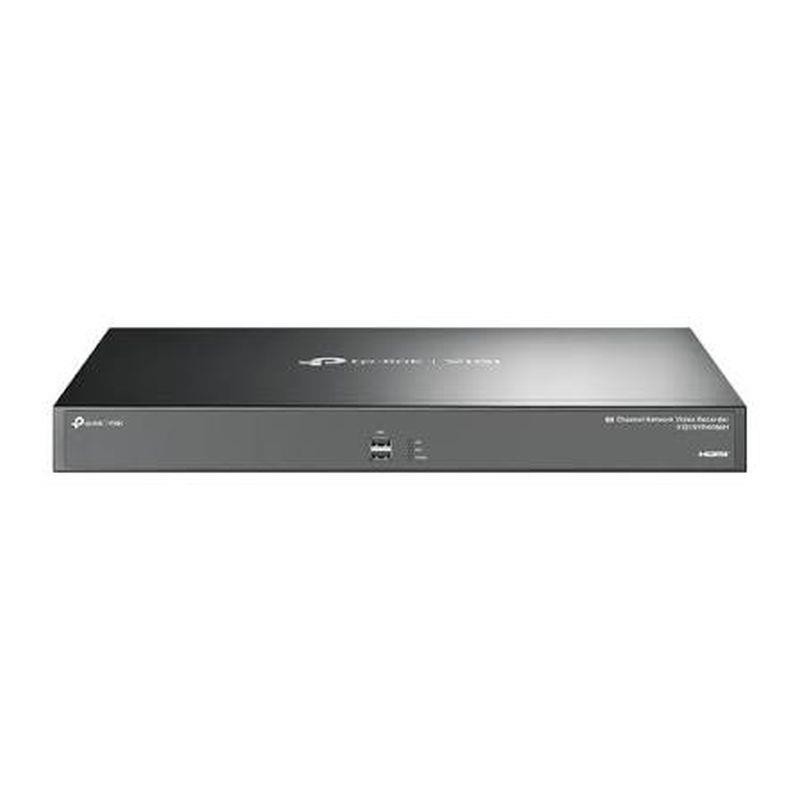

VIGI VIDEOGRABADOR DE RED NVR4064H 64 CANALES

VIGI NVR4064H
NVR VIGI de 64 canales
Live View de 64 canales y salida de vídeo HDMI 4K
Capacidad de decodificación de hasta 16 canales a 2MP (25fps) / 8 canales a 4MP (30fps)
Reproducción sincronizada de 16 canales†.
320 Mbps de ancho de banda entrante y 320 Mbps de ancho de banda saliente
4× Interfaces SATA y 1 de hasta 16 TB*.
Tecnología de compresión H.265+
2 salidas de vídeo HDMI y 1 salida de vídeo VGA
Monitorización remota


Video and Audio
IP Video Input64-Channel
Incoming BandwidthDefault: 260Mbps
Extended Bandwidth Mode: 320Mbps
Outgoing BandwidthDefault: 180Mbps
Extended Bandwidth Mode: 320Mbps
HDMI Output Resolution2 Channels
• HDMI1 Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• HDMI2 Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode• HDMI1/HDMI2 Independent output
• HDMI1/VGA Independent output

Note: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.
Multi-View Display1,4,6,8,9,16,25,32,36,49,64
DESCODIFICACIÓN
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Reproducción síncrona16-Channel†
Capacidad• 25fps:
16-ch@2MP?32-ch@720P?64-ch@D1

• 30fps:
4-ch@8MP?6-ch@5MP?8-ch@4MP
Record Management
Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
Red
ProtocoloUPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF Profile S, CGI
External Interface
Network Interface2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/Out16/4
Serial Interface1, RS232
Power1× AC Jack
Reset Button1
SpeakerN/A
eSATA1
HDMI2
VGA1
HDD
SATA4 SATA Interfaces
CapacidadUp to 16 TB Capacity for Each HDD*
Alarm
General Alarm• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Contenido del Paquete• VIGI Network Video Recorder
• Mouse
• Installation Guide
• Power Cord
• HDD Power Cables
• HDD Data Cables
• Terminal Blocks
• Mounting Brackets
• Screws
• Rubber Feet
Working TemperatureNVR: -10–55 °C
Working Humidity10%~90% RH Non-Condensing
Dimensiones17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm)
Peso neto4.0 Kg#
Peso bruto5.0 Kg#
Power Supply100-240 VAC, 50 to 60Hz, 1.5A
Consumo energético• 6.95 W (Without Disk)
• 48.38 W (With Disk)
CertificacionesCE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
