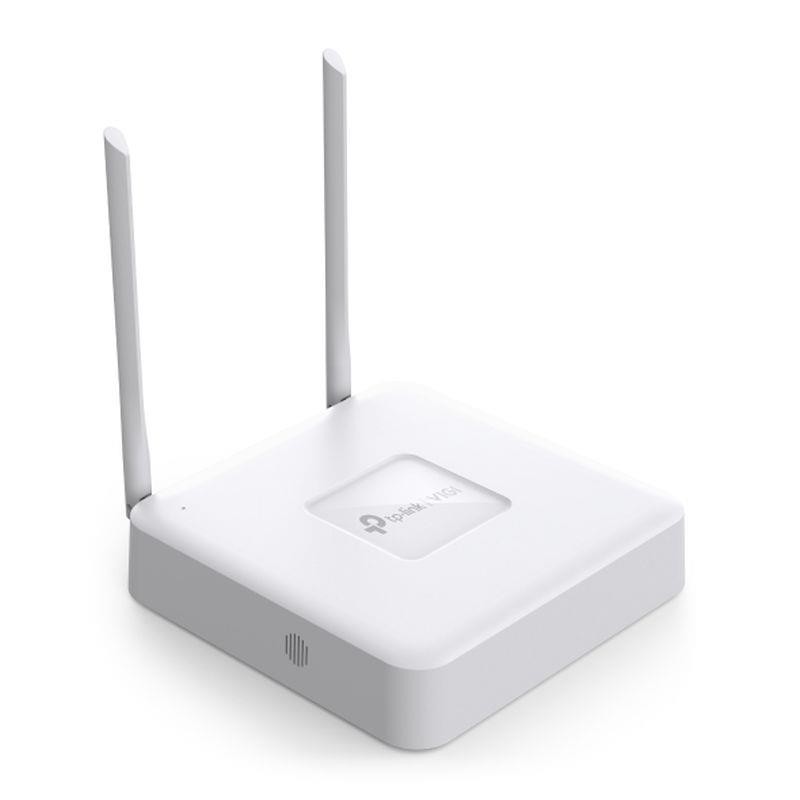

VIGI VIDEOGRABADOR DE RED NVR1108H-W BLANCO 8 CANALES

VIGI NVR1108H-W
NVR Wi-Fi VIGI de 8 canales
Visión en directo de 8 canales y salida de vídeo HDMI 4K
Módulo de enrutamiento integrado y compatibilidad con emparejamiento inalámbrico*
Capacidad de decodificación de hasta 8 canales a 2MP (25fps) / 4 canales a 4MP (25fps)
Reproducción sincronizada de 8 canales†
Ancho de banda entrante de 80 Mbps y ancho de banda saliente de 60 Mbps
1 Interfaz SATA (hasta 10 TB) **
Tecnología de compresión H.265+
Salida simultánea HDMI y VGA
Monitorización remota


Video and Audio
IP Video Input8-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4/6/8
DESCODIFICACIÓN
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Reproducción síncrona8-Channel†
Capacidad• 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

• 30fps:
4-ch @ 3MP, 2-ch @ 5MP
Record Management
Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Video Clip
• Export Clip
• Lock Recording
• Audio On/Off
Red
ProtocoloUPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF Profile S/T/G, CGI
Inalámbricos
EstándaresIEEE 802.11b/g/n
Canales Wi-Fi• UN: 1-13
• US: 1-11
Wireless Name• SSID Configuration
• Radio
Network SwitchYes
Frecuencia2.4 GHz
Auto Wireless ChannelN/A
Wireless StatisticsN/A
Throughput MonitoringN/A
Radio Bandwidth• Auto: Yes
• 20M: Yes
• 40M: Yes
Wireless Rate300Mbps(802.11n), 2 × 2 MIMO
Wireless SecurityWPA-PSK/WPA2-PSK
External Interface
Network Interface• 1× RJ-45 10/100 Mbps Self-Adaptive WAN/LAN Ethernet Interface
• 1× RJ-45 10/100 Mbps Self-Adaptive LAN Ethernet Interface
USB Interface2× USB 2.0
Audio Interface1-ch RCA Input; 1-ch RCA Output
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
Speaker1; Real-time Audio Output without Needing Peripherals.
eSATAN/A
HDMI1
VGA1
HDD
SATA1 SATA Interface
CapacidadUp to 10 TB Capacity for Each HDD**
Alarm
General Alarm• Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage• Recording
• White Light Alarm
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Contenido del Paquete• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
Working Temperature• NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
DimensionesExcluding Antennas: 7.9 × 7.9 × 1.7 in (200.3 × 200.3 × 43 mm)
Fuente de Alimentación ExternaDC 12V/2A
Peso neto0.5 kg
Peso bruto1.0 kg
Consumo energético• 5.7 W (Without Disk)
• 16.3 W (Without Disk)
Antenna• Quantity: 2
• Type: 2.4GHz Welded Non-detachable Antenna
• Gain: 5.3dBi
• Radio Frequency Transmit Power: 16dBm
• Length: 198.8 mm for Long Side and 189 mm for Short Side
CertificacionesBSMI, CE, HDMI, JRF, KC, NCC, NTRA, VCCI
